the amazing tales of the search for the invisible man! or, where's my gc root
all, I am writing to this list in some desperation hoping for some expert advice. We (the JIRA development team at Atlassian) have been hunting memory leaks for some weeks and in the process have tracked down and removed every possible reference to a large section of memory (a plugin framework) that we could find. Starting with all strong references and proceeding to remove soft and weak references - even things like clearing the java.lang.reflect.Proxy cache - and even Finalizer references until both YourKit, Eclipse MAT, JProfiler and jhat all report that the memory in question is dead and should be collectable, but inexplicably _the JVM still holds on to it_. There are no JNI Global references either, yet this memory remains uncollectable! This happens for the 1.5 and 1.6 JVMs on Linux and Mac, and the IBM 1.6 JDK on Linux. So my question is, how on earth do I search for what is referencing this uncollectable memory? Are there any other tools that can help find why this memory is not collected? Can I query the VM directly somehow? I fear this is a JVM GC bug as no known memory analysis tool can find the heap root (i.e. according to "the rules" there is no heap root). Are there any known GC memory leaks caused by ClassLoaders being dropped for instance? The application is creating and disposing of a lot of ClassLoaders via OSGi (Apache Felix) with Spring OSGi. It creates a lot of java.lang.reflect.Proxy class instances. We have written this up and added an example heap dump here: http://jira.atlassian.com/browse/JRA-16932 Having come to the end of our tethers here, if anyone can help in any way it would be massively appreciated. cheers, Jed Wesley-Smith JIRA Team @ Atlassian
Hi, What are your jvm startup options? Have you try press the "GC" button in JConsole and see those garbage can be collected? Have you turn on DisableExplicitGC? If so, try to invoke a command to your jvm to see those garbage can be collected? jmap -histo:live [pid] Regards, Ken Jed Wesley-Smith wrote:
all,
I am writing to this list in some desperation hoping for some expert advice. We (the JIRA development team at Atlassian) have been hunting memory leaks for some weeks and in the process have tracked down and removed every possible reference to a large section of memory (a plugin framework) that we could find. Starting with all strong references and proceeding to remove soft and weak references - even things like clearing the java.lang.reflect.Proxy cache - and even Finalizer references until both YourKit, Eclipse MAT, JProfiler and jhat all report that the memory in question is dead and should be collectable, but inexplicably _the JVM still holds on to it_. There are no JNI Global references either, yet this memory remains uncollectable!
This happens for the 1.5 and 1.6 JVMs on Linux and Mac, and the IBM 1.6 JDK on Linux.
So my question is, how on earth do I search for what is referencing this uncollectable memory? Are there any other tools that can help find why this memory is not collected? Can I query the VM directly somehow?
I fear this is a JVM GC bug as no known memory analysis tool can find the heap root (i.e. according to "the rules" there is no heap root). Are there any known GC memory leaks caused by ClassLoaders being dropped for instance?
The application is creating and disposing of a lot of ClassLoaders via OSGi (Apache Felix) with Spring OSGi. It creates a lot of java.lang.reflect.Proxy class instances.
We have written this up and added an example heap dump here: http://jira.atlassian.com/browse/JRA-16932
Having come to the end of our tethers here, if anyone can help in any way it would be massively appreciated.
cheers, Jed Wesley-Smith JIRA Team @ Atlassian
-- View this message in context: http://www.nabble.com/the-amazing-tales-of-the-search-for-the-invisible-man%... Sent from the OpenJDK Hotspot Garbage Collection mailing list archive at Nabble.com.
OK, I'll bite. When you say: "a large section of memory (a plugin framework)" do you mean only objects in the young / old gen, or also classes in the perm gen? How do you know that said memory is not being reclaimed? Do you eventually get an OOM? Given that it happens with two different JVMs (I assume you use HotSpot on Linux and Mac, as well as the IBM JDK), it's unlikely to be a GC bug, as both JVMs would need to have the same bug. Not impossible, but unlikely, IMHO. Tony Jed Wesley-Smith wrote:
all,
I am writing to this list in some desperation hoping for some expert advice. We (the JIRA development team at Atlassian) have been hunting memory leaks for some weeks and in the process have tracked down and removed every possible reference to a large section of memory (a plugin framework) that we could find. Starting with all strong references and proceeding to remove soft and weak references - even things like clearing the java.lang.reflect.Proxy cache - and even Finalizer references until both YourKit, Eclipse MAT, JProfiler and jhat all report that the memory in question is dead and should be collectable, but inexplicably _the JVM still holds on to it_. There are no JNI Global references either, yet this memory remains uncollectable!
This happens for the 1.5 and 1.6 JVMs on Linux and Mac, and the IBM 1.6 JDK on Linux.
So my question is, how on earth do I search for what is referencing this uncollectable memory? Are there any other tools that can help find why this memory is not collected? Can I query the VM directly somehow?
I fear this is a JVM GC bug as no known memory analysis tool can find the heap root (i.e. according to "the rules" there is no heap root). Are there any known GC memory leaks caused by ClassLoaders being dropped for instance?
The application is creating and disposing of a lot of ClassLoaders via OSGi (Apache Felix) with Spring OSGi. It creates a lot of java.lang.reflect.Proxy class instances.
We have written this up and added an example heap dump here: http://jira.atlassian.com/browse/JRA-16932
Having come to the end of our tethers here, if anyone can help in any way it would be massively appreciated.
cheers, Jed Wesley-Smith JIRA Team @ Atlassian
-- --------------------------------------------------------------------- | Tony Printezis, Staff Engineer | Sun Microsystems Inc. | | | MS UBUR02-311 | | e-mail: tony.printezis@sun.com | 35 Network Drive | | office: +1 781 442 0998 (x20998) | Burlington, MA 01803-2756, USA | --------------------------------------------------------------------- e-mail client: Thunderbird (Linux)
Classes as well. We end up getting an OOME although the profilers report only a third of the heap is reachable. Although I indicated we saw this on the IBM jdk analysis of that dump showed a completely different issue that apparently may not be a problem (due to reflection optimisation on that jdk) - the dead objects appear to have been correctly cleared. We are reproducing this to verify. Additionally we tried running with -client on the sun jvms as we saw a bug that might have caused it reported against server only but without success. cheers, jed. On 16/04/2009, at 12:51 AM, Tony Printezis <Antonios.Printezis@sun.com> wrote:
OK, I'll bite.
When you say: "a large section of memory (a plugin framework)" do you mean only objects in the young / old gen, or also classes in the perm gen?
How do you know that said memory is not being reclaimed? Do you eventually get an OOM?
Given that it happens with two different JVMs (I assume you use HotSpot on Linux and Mac, as well as the IBM JDK), it's unlikely to be a GC bug, as both JVMs would need to have the same bug. Not impossible, but unlikely, IMHO.
Tony
Jed Wesley-Smith wrote:
all,
I am writing to this list in some desperation hoping for some expert advice. We (the JIRA development team at Atlassian) have been hunting memory leaks for some weeks and in the process have tracked down and removed every possible reference to a large section of memory (a plugin framework) that we could find. Starting with all strong references and proceeding to remove soft and weak references - even things like clearing the java.lang.reflect.Proxy cache - and even Finalizer references until both YourKit, Eclipse MAT, JProfiler and jhat all report that the memory in question is dead and should be collectable, but inexplicably _the JVM still holds on to it_. There are no JNI Global references either, yet this memory remains uncollectable!
This happens for the 1.5 and 1.6 JVMs on Linux and Mac, and the IBM 1.6 JDK on Linux.
So my question is, how on earth do I search for what is referencing this uncollectable memory? Are there any other tools that can help find why this memory is not collected? Can I query the VM directly somehow?
I fear this is a JVM GC bug as no known memory analysis tool can find the heap root (i.e. according to "the rules" there is no heap root). Are there any known GC memory leaks caused by ClassLoaders being dropped for instance?
The application is creating and disposing of a lot of ClassLoaders via OSGi (Apache Felix) with Spring OSGi. It creates a lot of java.lang.reflect.Proxy class instances.
We have written this up and added an example heap dump here: http://jira.atlassian.com/browse/JRA-16932
Having come to the end of our tethers here, if anyone can help in any way it would be massively appreciated.
cheers, Jed Wesley-Smith JIRA Team @ Atlassian
-- --------------------------------------------------------------------- | Tony Printezis, Staff Engineer | Sun Microsystems Inc. | | | MS UBUR02-311 | | e-mail: tony.printezis@sun.com | 35 Network Drive | | office: +1 781 442 0998 (x20998) | Burlington, MA 01803-2756, USA | --------------------------------------------------------------------- e-mail client: Thunderbird (Linux)
Hi Jed, I've had a quick look at the heap dump. I'm having a little trouble understanding what is in there. What I can see is a large number of java.lang.reflect.Method objects being held. There seems to be two competing patterns of references holding onto these objects. I've attached some screenshots rather than use words. The scary thing is that the references include ClassLoader.scl, JDK12Hooks.systemClassLoader as well as Apache commons logging LogFactory. With this type of the complex entanglement it would seem unlikely that these objects would ever be collected. The other pattern also includes the spiders web of references. It also includes UberspecImpl and a whole bunch of static collections. IME, static collections are involved in the vast majority of leaks I've diagnosed. Interestingly enough the a portion of the 2nd largest consumer of memory is also tangled up in the JDK12Hooks. Random sampling leads me to AST parse trees and "no reference". Looks like much of this is tied up with Velocity. In fact the largest consumer of memory at 24% is char[]. I'm failing to find anything that is not tied up with Velocity (AST parsing). Needs more investigation. Be interesting to run a test with generations turned on. NetBeans generations is a true count unlike that provided by YourKit. Regards, Kirk Jed Wesley-Smith wrote:
Classes as well. We end up getting an OOME although the profilers report only a third of the heap is reachable.
Although I indicated we saw this on the IBM jdk analysis of that dump showed a completely different issue that apparently may not be a problem (due to reflection optimisation on that jdk) - the dead objects appear to have been correctly cleared. We are reproducing this to verify.
Additionally we tried running with -client on the sun jvms as we saw a bug that might have caused it reported against server only but without success.
cheers, jed.
On 16/04/2009, at 12:51 AM, Tony Printezis <Antonios.Printezis@sun.com> wrote:
OK, I'll bite.
When you say: "a large section of memory (a plugin framework)" do you mean only objects in the young / old gen, or also classes in the perm gen?
How do you know that said memory is not being reclaimed? Do you eventually get an OOM?
Given that it happens with two different JVMs (I assume you use HotSpot on Linux and Mac, as well as the IBM JDK), it's unlikely to be a GC bug, as both JVMs would need to have the same bug. Not impossible, but unlikely, IMHO.
Tony
Jed Wesley-Smith wrote:
all,
I am writing to this list in some desperation hoping for some expert advice. We (the JIRA development team at Atlassian) have been hunting memory leaks for some weeks and in the process have tracked down and removed every possible reference to a large section of memory (a plugin framework) that we could find. Starting with all strong references and proceeding to remove soft and weak references - even things like clearing the java.lang.reflect.Proxy cache - and even Finalizer references until both YourKit, Eclipse MAT, JProfiler and jhat all report that the memory in question is dead and should be collectable, but inexplicably _the JVM still holds on to it_. There are no JNI Global references either, yet this memory remains uncollectable!
This happens for the 1.5 and 1.6 JVMs on Linux and Mac, and the IBM 1.6 JDK on Linux.
So my question is, how on earth do I search for what is referencing this uncollectable memory? Are there any other tools that can help find why this memory is not collected? Can I query the VM directly somehow?
I fear this is a JVM GC bug as no known memory analysis tool can find the heap root (i.e. according to "the rules" there is no heap root). Are there any known GC memory leaks caused by ClassLoaders being dropped for instance?
The application is creating and disposing of a lot of ClassLoaders via OSGi (Apache Felix) with Spring OSGi. It creates a lot of java.lang.reflect.Proxy class instances.
We have written this up and added an example heap dump here: http://jira.atlassian.com/browse/JRA-16932
Having come to the end of our tethers here, if anyone can help in any way it would be massively appreciated.
cheers, Jed Wesley-Smith JIRA Team @ Atlassian
-- --------------------------------------------------------------------- | Tony Printezis, Staff Engineer | Sun Microsystems Inc. | | | MS UBUR02-311 | | e-mail: tony.printezis@sun.com | 35 Network Drive | | office: +1 781 442 0998 (x20998) | Burlington, MA 01803-2756, USA | --------------------------------------------------------------------- e-mail client: Thunderbird (Linux)
Well, I was going to pointer the finger towards the class loaders... but Kirk here did a much more thorough analysis! :-) Tony kirk wrote:
Hi Jed,

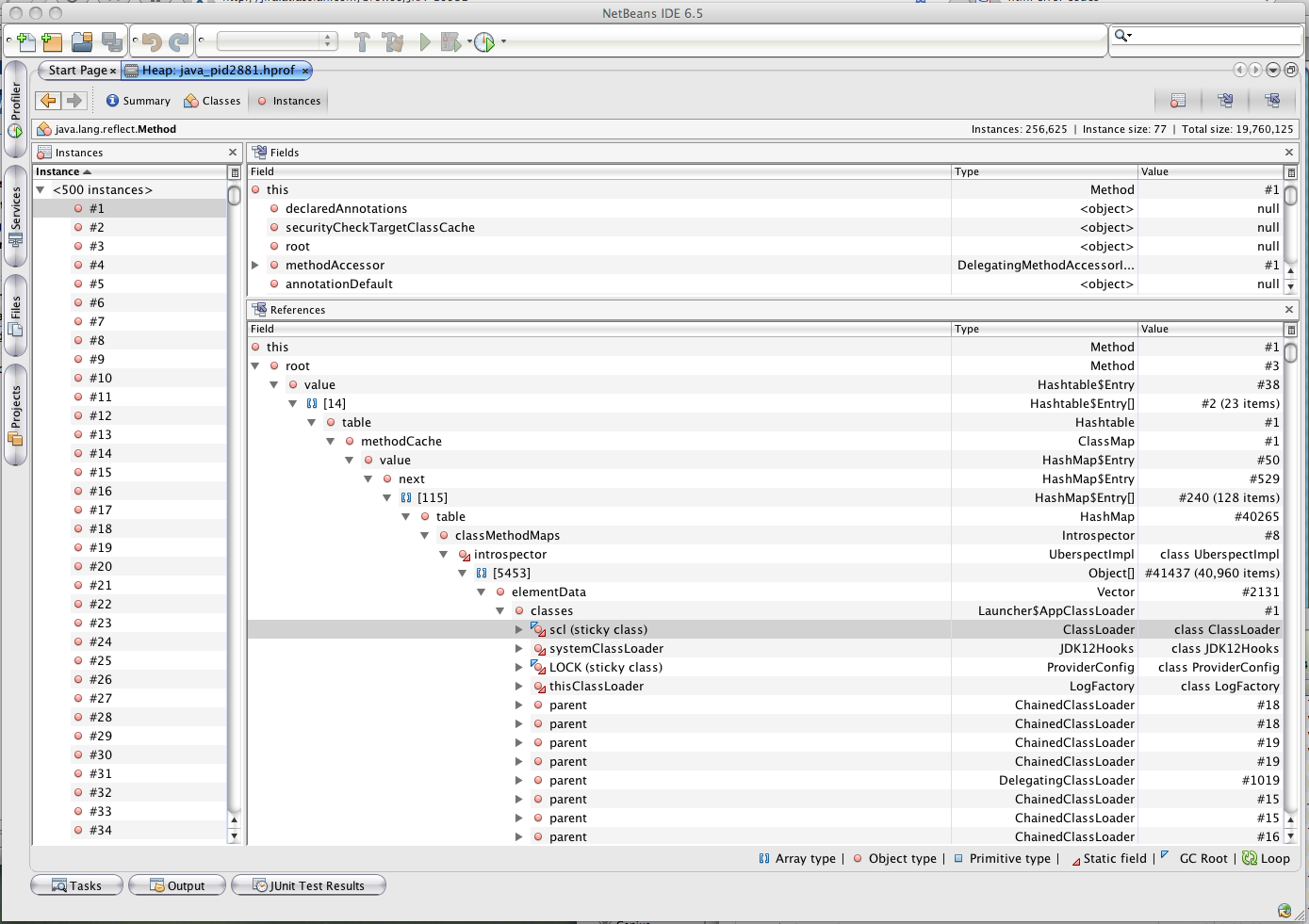

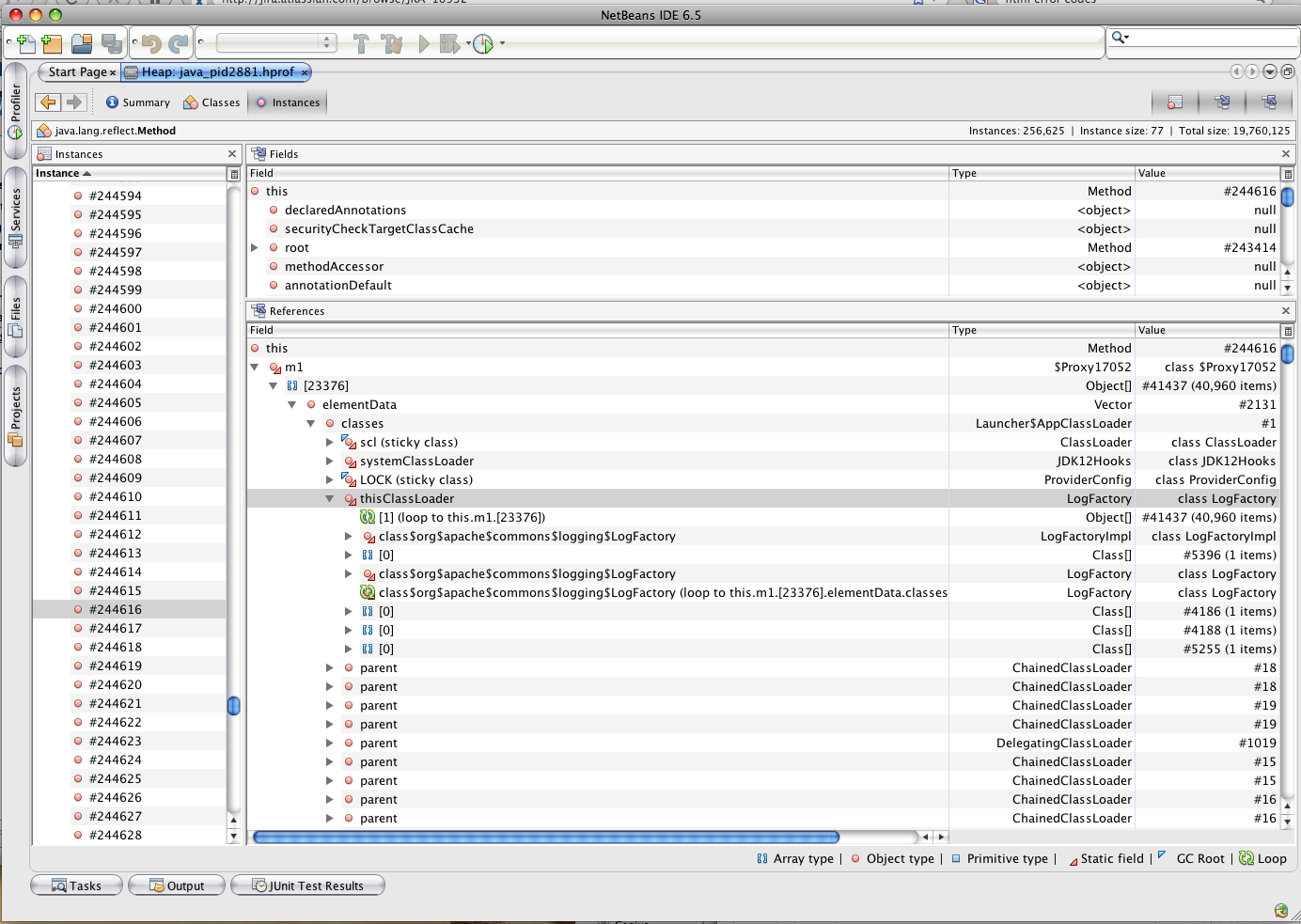

I've had a quick look at the heap dump. I'm having a little trouble understanding what is in there. What I can see is a large number of java.lang.reflect.Method objects being held. There seems to be two competing patterns of references holding onto these objects. I've attached some screenshots rather than use words.
The scary thing is that the references include ClassLoader.scl, JDK12Hooks.systemClassLoader as well as Apache commons logging LogFactory. With this type of the complex entanglement it would seem unlikely that these objects would ever be collected. The other pattern also includes the spiders web of references. It also includes UberspecImpl and a whole bunch of static collections. IME, static collections are involved in the vast majority of leaks I've diagnosed.
Interestingly enough the a portion of the 2nd largest consumer of memory is also tangled up in the JDK12Hooks. Random sampling leads me to AST parse trees and "no reference". Looks like much of this is tied up with Velocity. In fact the largest consumer of memory at 24% is char[]. I'm failing to find anything that is not tied up with Velocity (AST parsing).
Needs more investigation. Be interesting to run a test with generations turned on. NetBeans generations is a true count unlike that provided by YourKit.
Regards, Kirk
Jed Wesley-Smith wrote:
Classes as well. We end up getting an OOME although the profilers report only a third of the heap is reachable.
Although I indicated we saw this on the IBM jdk analysis of that dump showed a completely different issue that apparently may not be a problem (due to reflection optimisation on that jdk) - the dead objects appear to have been correctly cleared. We are reproducing this to verify.
Additionally we tried running with -client on the sun jvms as we saw a bug that might have caused it reported against server only but without success.
cheers, jed.
On 16/04/2009, at 12:51 AM, Tony Printezis <Antonios.Printezis@sun.com> wrote:
OK, I'll bite.
When you say: "a large section of memory (a plugin framework)" do you mean only objects in the young / old gen, or also classes in the perm gen?
How do you know that said memory is not being reclaimed? Do you eventually get an OOM?
Given that it happens with two different JVMs (I assume you use HotSpot on Linux and Mac, as well as the IBM JDK), it's unlikely to be a GC bug, as both JVMs would need to have the same bug. Not impossible, but unlikely, IMHO.
Tony
Jed Wesley-Smith wrote:
all,
I am writing to this list in some desperation hoping for some expert advice. We (the JIRA development team at Atlassian) have been hunting memory leaks for some weeks and in the process have tracked down and removed every possible reference to a large section of memory (a plugin framework) that we could find. Starting with all strong references and proceeding to remove soft and weak references - even things like clearing the java.lang.reflect.Proxy cache - and even Finalizer references until both YourKit, Eclipse MAT, JProfiler and jhat all report that the memory in question is dead and should be collectable, but inexplicably _the JVM still holds on to it_. There are no JNI Global references either, yet this memory remains uncollectable!
This happens for the 1.5 and 1.6 JVMs on Linux and Mac, and the IBM 1.6 JDK on Linux.
So my question is, how on earth do I search for what is referencing this uncollectable memory? Are there any other tools that can help find why this memory is not collected? Can I query the VM directly somehow?
I fear this is a JVM GC bug as no known memory analysis tool can find the heap root (i.e. according to "the rules" there is no heap root). Are there any known GC memory leaks caused by ClassLoaders being dropped for instance?
The application is creating and disposing of a lot of ClassLoaders via OSGi (Apache Felix) with Spring OSGi. It creates a lot of java.lang.reflect.Proxy class instances.
We have written this up and added an example heap dump here: http://jira.atlassian.com/browse/JRA-16932
Having come to the end of our tethers here, if anyone can help in any way it would be massively appreciated.
cheers, Jed Wesley-Smith JIRA Team @ Atlassian
-- --------------------------------------------------------------------- | Tony Printezis, Staff Engineer | Sun Microsystems Inc. | | | MS UBUR02-311 | | e-mail: tony.printezis@sun.com | 35 Network Drive | | office: +1 781 442 0998 (x20998) | Burlington, MA 01803-2756, USA | --------------------------------------------------------------------- e-mail client: Thunderbird (Linux)
forgot to attach. Regards, Kirk Tony Printezis wrote:
Well, I was going to pointer the finger towards the class loaders... but Kirk here did a much more thorough analysis! :-)
Tony
kirk wrote:
Hi Jed,
I've had a quick look at the heap dump. I'm having a little trouble understanding what is in there. What I can see is a large number of java.lang.reflect.Method objects being held. There seems to be two competing patterns of references holding onto these objects. I've attached some screenshots rather than use words.
The scary thing is that the references include ClassLoader.scl, JDK12Hooks.systemClassLoader as well as Apache commons logging LogFactory. With this type of the complex entanglement it would seem unlikely that these objects would ever be collected. The other pattern also includes the spiders web of references. It also includes UberspecImpl and a whole bunch of static collections. IME, static collections are involved in the vast majority of leaks I've diagnosed.
Interestingly enough the a portion of the 2nd largest consumer of memory is also tangled up in the JDK12Hooks. Random sampling leads me to AST parse trees and "no reference". Looks like much of this is tied up with Velocity. In fact the largest consumer of memory at 24% is char[]. I'm failing to find anything that is not tied up with Velocity (AST parsing).
Needs more investigation. Be interesting to run a test with generations turned on. NetBeans generations is a true count unlike that provided by YourKit.
Regards, Kirk
Jed Wesley-Smith wrote:
Classes as well. We end up getting an OOME although the profilers report only a third of the heap is reachable.
Although I indicated we saw this on the IBM jdk analysis of that dump showed a completely different issue that apparently may not be a problem (due to reflection optimisation on that jdk) - the dead objects appear to have been correctly cleared. We are reproducing this to verify.
Additionally we tried running with -client on the sun jvms as we saw a bug that might have caused it reported against server only but without success.
cheers, jed.
On 16/04/2009, at 12:51 AM, Tony Printezis <Antonios.Printezis@sun.com> wrote:
OK, I'll bite.
When you say: "a large section of memory (a plugin framework)" do you mean only objects in the young / old gen, or also classes in the perm gen?
How do you know that said memory is not being reclaimed? Do you eventually get an OOM?
Given that it happens with two different JVMs (I assume you use HotSpot on Linux and Mac, as well as the IBM JDK), it's unlikely to be a GC bug, as both JVMs would need to have the same bug. Not impossible, but unlikely, IMHO.
Tony
Jed Wesley-Smith wrote:
all,
I am writing to this list in some desperation hoping for some expert advice. We (the JIRA development team at Atlassian) have been hunting memory leaks for some weeks and in the process have tracked down and removed every possible reference to a large section of memory (a plugin framework) that we could find. Starting with all strong references and proceeding to remove soft and weak references - even things like clearing the java.lang.reflect.Proxy cache - and even Finalizer references until both YourKit, Eclipse MAT, JProfiler and jhat all report that the memory in question is dead and should be collectable, but inexplicably _the JVM still holds on to it_. There are no JNI Global references either, yet this memory remains uncollectable!
This happens for the 1.5 and 1.6 JVMs on Linux and Mac, and the IBM 1.6 JDK on Linux.
So my question is, how on earth do I search for what is referencing this uncollectable memory? Are there any other tools that can help find why this memory is not collected? Can I query the VM directly somehow?
I fear this is a JVM GC bug as no known memory analysis tool can find the heap root (i.e. according to "the rules" there is no heap root). Are there any known GC memory leaks caused by ClassLoaders being dropped for instance?
The application is creating and disposing of a lot of ClassLoaders via OSGi (Apache Felix) with Spring OSGi. It creates a lot of java.lang.reflect.Proxy class instances.
We have written this up and added an example heap dump here: http://jira.atlassian.com/browse/JRA-16932
Having come to the end of our tethers here, if anyone can help in any way it would be massively appreciated.
cheers, Jed Wesley-Smith JIRA Team @ Atlassian
-- --------------------------------------------------------------------- | Tony Printezis, Staff Engineer | Sun Microsystems Inc. | | | MS UBUR02-311 | | e-mail: tony.printezis@sun.com | 35 Network Drive | | office: +1 781 442 0998 (x20998) | Burlington, MA 01803-2756, USA | --------------------------------------------------------------------- e-mail client: Thunderbird (Linux)
Kirk, Thanks for the info. I will try NetBeans and look at what it tells me - this is certainly a lot more useful than what the other tools have been able to give me. Unfortunately it is Saturday morning in Sydney and I will not be able to attempt with generations on until Monday. As reported below, we have verified that the IBM JVM does not leak the plugin system classes. cheers, jed. On 18/04/2009, at 3:51 AM, kirk wrote:
Hi Jed,
I've had a quick look at the heap dump. I'm having a little trouble understanding what is in there. What I can see is a large number of java.lang.reflect.Method objects being held. There seems to be two competing patterns of references holding onto these objects. I've attached some screenshots rather than use words.
The scary thing is that the references include ClassLoader.scl, JDK12Hooks.systemClassLoader as well as Apache commons logging LogFactory. With this type of the complex entanglement it would seem unlikely that these objects would ever be collected. The other pattern also includes the spiders web of references. It also includes UberspecImpl and a whole bunch of static collections. IME, static collections are involved in the vast majority of leaks I've diagnosed.
Interestingly enough the a portion of the 2nd largest consumer of memory is also tangled up in the JDK12Hooks. Random sampling leads me to AST parse trees and "no reference". Looks like much of this is tied up with Velocity. In fact the largest consumer of memory at 24% is char[]. I'm failing to find anything that is not tied up with Velocity (AST parsing).
Needs more investigation. Be interesting to run a test with generations turned on. NetBeans generations is a true count unlike that provided by YourKit.
Regards, Kirk
Jed Wesley-Smith wrote:
Classes as well. We end up getting an OOME although the profilers report only a third of the heap is reachable.
Although I indicated we saw this on the IBM jdk analysis of that dump showed a completely different issue that apparently may not be a problem (due to reflection optimisation on that jdk) - the dead objects appear to have been correctly cleared. We are reproducing this to verify.
Additionally we tried running with -client on the sun jvms as we saw a bug that might have caused it reported against server only but without success.
cheers, jed.
On 16/04/2009, at 12:51 AM, Tony Printezis <Antonios.Printezis@sun.com
wrote:
OK, I'll bite.
When you say: "a large section of memory (a plugin framework)" do you mean only objects in the young / old gen, or also classes in the perm gen?
How do you know that said memory is not being reclaimed? Do you eventually get an OOM?
Given that it happens with two different JVMs (I assume you use HotSpot on Linux and Mac, as well as the IBM JDK), it's unlikely to be a GC bug, as both JVMs would need to have the same bug. Not impossible, but unlikely, IMHO.
Tony
Jed Wesley-Smith wrote:
all,
I am writing to this list in some desperation hoping for some expert advice. We (the JIRA development team at Atlassian) have been hunting memory leaks for some weeks and in the process have tracked down and removed every possible reference to a large section of memory (a plugin framework) that we could find. Starting with all strong references and proceeding to remove soft and weak references - even things like clearing the java.lang.reflect.Proxy cache - and even Finalizer references until both YourKit, Eclipse MAT, JProfiler and jhat all report that the memory in question is dead and should be collectable, but inexplicably _the JVM still holds on to it_. There are no JNI Global references either, yet this memory remains uncollectable!
This happens for the 1.5 and 1.6 JVMs on Linux and Mac, and the IBM 1.6 JDK on Linux.
So my question is, how on earth do I search for what is referencing this uncollectable memory? Are there any other tools that can help find why this memory is not collected? Can I query the VM directly somehow?
I fear this is a JVM GC bug as no known memory analysis tool can find the heap root (i.e. according to "the rules" there is no heap root). Are there any known GC memory leaks caused by ClassLoaders being dropped for instance?
The application is creating and disposing of a lot of ClassLoaders via OSGi (Apache Felix) with Spring OSGi. It creates a lot of java.lang.reflect.Proxy class instances.
We have written this up and added an example heap dump here: http://jira.atlassian.com/browse/JRA-16932
Having come to the end of our tethers here, if anyone can help in any way it would be massively appreciated.
cheers, Jed Wesley-Smith JIRA Team @ Atlassian
-- --------------------------------------------------------------------- | Tony Printezis, Staff Engineer | Sun Microsystems Inc. | | | MS UBUR02-311 | | e-mail: tony.printezis@sun.com | 35 Network Drive | | office: +1 781 442 0998 (x20998) | Burlington, MA 01803-2756, USA | --------------------------------------------------------------------- e-mail client: Thunderbird (Linux)
Hi Kirk, Having had a chance to look more into your findings I think we are getting somewhere, but I still have some questions. The java.lang.reflect.Method count definitely looks like a problem, but I it is a by-product of one of the things I was using to eliminate (noisy) references - specifically the weak references that were coming java.lang.reflect.Proxy.loaderToCache and java.lang.reflect.Proxy. Unfortunately removing the caching meant that these proxies get recreated and hence the Method objects get recreated. I removed this code and rerun the tests and can confirm that the number of Method objects is now much smaller (10k). Of more specific interest to us is the number of objects that have no GC root. I was hoping that the NetBeans analyzer might be able to identify a root that all the other analyzers had failed to find. For instance if I look at the instances of the "JiraPluginManager" I see over a dozen instances (there should normally only be one and never be more than two - while the plugin system is reloading). If I ask the NetBeans profiler (like every other profiler) for the nearest GC root it says that none is found. There should only be about 50MB of reachable heap but there is ~80MB dark heap that will not be GC'd by the Sun JVM. Another interesting case in point is the hundreds of DefaultPicoContainer instances with no GC root. These guys have fairly tightly circular reference chains with the various ComponentAdapter instances, but will not die. Also check out the ASTReference instances. These seem to have some of the tightest We have definitely established that there is no memory leak under the IBM JDK. The aforementioned Proxy cache clearing was causing problems with heap growth but once we removed that it went away. Our stab in the dark theory about this is that there is somehow just too much densely circular referenced heap chains living in the old gen that are somehow causing the GC algorithm to choke. The fact that the CMS collector helps to some extent does seem to support this theory. On the converse to this theory is that reducing the application's workload to zero and repeatedly asking it to full GC it will not release any further heap. We have looked at all finalizers and the most that any of them do is to call JarFile.close(). Following is the list of objects that may be finalized: 1 com.sun.crypto.provider.PBEKey 71 java.io.FileInputStream 10 java.io.FileOutputStream 7 java.lang.ClassLoader$NativeLibrary 14 java.net.SocksSocketImpl 22 java.util.Timer$1 1 java.util.concurrent.ScheduledThreadPoolExecutor 2 java.util.concurrent.ThreadPoolExecutor 227 java.util.jar.JarFile 288 java.util.zip.Inflater 143 org.apache.felix.framework.cache.JarContent 2 org.apache.log4j.ConsoleAppender 6 org.apache.log4j.RollingFileAppender 1 org.hsqldb.Database 8 org.hsqldb.jdbc.jdbcConnection 1 org.hsqldb.persist.NIOLockFile 1 org.hsqldb.scriptio.ScriptWriterText 86 sun.net.www.protocol.jar.URLJarFile None of them contain references back to any of the application. If anyone can help us understand why the JiraPluginManager and other instances listed above remain under the Sun JVM it would be most appreciated. cheers, jed. kirk wrote:
Hi Jed,
I've had a quick look at the heap dump. I'm having a little trouble understanding what is in there. What I can see is a large number of java.lang.reflect.Method objects being held. There seems to be two competing patterns of references holding onto these objects. I've attached some screenshots rather than use words.
The scary thing is that the references include ClassLoader.scl, JDK12Hooks.systemClassLoader as well as Apache commons logging LogFactory. With this type of the complex entanglement it would seem unlikely that these objects would ever be collected. The other pattern also includes the spiders web of references. It also includes UberspecImpl and a whole bunch of static collections. IME, static collections are involved in the vast majority of leaks I've diagnosed.
Interestingly enough the a portion of the 2nd largest consumer of memory is also tangled up in the JDK12Hooks. Random sampling leads me to AST parse trees and "no reference". Looks like much of this is tied up with Velocity. In fact the largest consumer of memory at 24% is char[]. I'm failing to find anything that is not tied up with Velocity (AST parsing).
Needs more investigation. Be interesting to run a test with generations turned on. NetBeans generations is a true count unlike that provided by YourKit.
Regards, Kirk
Jed Wesley-Smith wrote:
Classes as well. We end up getting an OOME although the profilers report only a third of the heap is reachable.
Although I indicated we saw this on the IBM jdk analysis of that dump showed a completely different issue that apparently may not be a problem (due to reflection optimisation on that jdk) - the dead objects appear to have been correctly cleared. We are reproducing this to verify.
Additionally we tried running with -client on the sun jvms as we saw a bug that might have caused it reported against server only but without success.
cheers, jed.
On 16/04/2009, at 12:51 AM, Tony Printezis <Antonios.Printezis@sun.com> wrote:
OK, I'll bite.
When you say: "a large section of memory (a plugin framework)" do you mean only objects in the young / old gen, or also classes in the perm gen?
How do you know that said memory is not being reclaimed? Do you eventually get an OOM?
Given that it happens with two different JVMs (I assume you use HotSpot on Linux and Mac, as well as the IBM JDK), it's unlikely to be a GC bug, as both JVMs would need to have the same bug. Not impossible, but unlikely, IMHO.
Tony
Jed Wesley-Smith wrote:
all,
I am writing to this list in some desperation hoping for some expert advice. We (the JIRA development team at Atlassian) have been hunting memory leaks for some weeks and in the process have tracked down and removed every possible reference to a large section of memory (a plugin framework) that we could find. Starting with all strong references and proceeding to remove soft and weak references - even things like clearing the java.lang.reflect.Proxy cache - and even Finalizer references until both YourKit, Eclipse MAT, JProfiler and jhat all report that the memory in question is dead and should be collectable, but inexplicably _the JVM still holds on to it_. There are no JNI Global references either, yet this memory remains uncollectable!
This happens for the 1.5 and 1.6 JVMs on Linux and Mac, and the IBM 1.6 JDK on Linux.
So my question is, how on earth do I search for what is referencing this uncollectable memory? Are there any other tools that can help find why this memory is not collected? Can I query the VM directly somehow?
I fear this is a JVM GC bug as no known memory analysis tool can find the heap root (i.e. according to "the rules" there is no heap root). Are there any known GC memory leaks caused by ClassLoaders being dropped for instance?
The application is creating and disposing of a lot of ClassLoaders via OSGi (Apache Felix) with Spring OSGi. It creates a lot of java.lang.reflect.Proxy class instances.
We have written this up and added an example heap dump here: http://jira.atlassian.com/browse/JRA-16932
Having come to the end of our tethers here, if anyone can help in any way it would be massively appreciated.
cheers, Jed Wesley-Smith JIRA Team @ Atlassian
Ok, new information. You are using CMS. By default, CMS doesn't collect perm-space. The class-loader related bits that I saw would be in perm-space. IBM heap is structured very differently and it doesn't contain a perm-space. Your conformation of no leak in IBM JVM points directly to a perm-space leak. Read Frank Kieviet's blogs about perm space. http://blogs.sun.com/fkieviet/entry/classloader_leaks_the_dreaded_java I am on the tipping point about CMS not collecting perm-space by default and perm-space leaks in general. But I can charge nice sums of money fixing them and look like Scotty in the process so I shalln't bite the hand that feeds.. ;-) In your case I'll just be looking for more beer! I was chatting to Tony about the number of int[] arrays in the profile. He mentioned that holes in heap maybe represented as int[] with no GC root. This can be a bit confusing at first glance. JiraPluginManager and DefaultPicoContainer.. hummm. I need to take another look. Ok for the Default PicoContainer I checked the first 10 of 89 instances and was able to locate a GC root for each of them. The first instance has one GC root as a Java frame. Tracing back you get right into apache commons classloaders once again. There are a number of weak links buy more importantly, there are a number of array slots that also keep a grip on these objects. Strangely enough, the first one that I randomly selected had no GC root. IMHO, this object should be collectable and since it hasn't been there are one of two possibilities. It is either in perm space or it is a dead object that wasn't collected prior to the heap dump being taken. A heap dump contains *all* objects, both dead and alive. Best to run GC twice prior to dumping heap. 8 instances of JiraPluginManager. 6 have no GC roots and should be collectable. The first instance is listed as a JavaFrame and the last is tied up with apache commons classloading. See if you can set the CMS perm space sweeping flag, this the System.gc() twice and then re-take a heap dump and send it. I'll have another look Regards, Kirk Jed Wesley-Smith wrote:
Hi Kirk,
Having had a chance to look more into your findings I think we are getting somewhere, but I still have some questions.
The java.lang.reflect.Method count definitely looks like a problem, but I it is a by-product of one of the things I was using to eliminate (noisy) references - specifically the weak references that were coming java.lang.reflect.Proxy.loaderToCache and java.lang.reflect.Proxy. Unfortunately removing the caching meant that these proxies get recreated and hence the Method objects get recreated. I removed this code and rerun the tests and can confirm that the number of Method objects is now much smaller (10k).
Of more specific interest to us is the number of objects that have no GC root. I was hoping that the NetBeans analyzer might be able to identify a root that all the other analyzers had failed to find. For instance if I look at the instances of the "JiraPluginManager" I see over a dozen instances (there should normally only be one and never be more than two - while the plugin system is reloading). If I ask the NetBeans profiler (like every other profiler) for the nearest GC root it says that none is found. There should only be about 50MB of reachable heap but there is ~80MB dark heap that will not be GC'd by the Sun JVM. Another interesting case in point is the hundreds of DefaultPicoContainer instances with no GC root. These guys have fairly tightly circular reference chains with the various ComponentAdapter instances, but will not die. Also check out the ASTReference instances. These seem to have some of the tightest
We have definitely established that there is no memory leak under the IBM JDK. The aforementioned Proxy cache clearing was causing problems with heap growth but once we removed that it went away.
Our stab in the dark theory about this is that there is somehow just too much densely circular referenced heap chains living in the old gen that are somehow causing the GC algorithm to choke. The fact that the CMS collector helps to some extent does seem to support this theory. On the converse to this theory is that reducing the application's workload to zero and repeatedly asking it to full GC it will not release any further heap.
We have looked at all finalizers and the most that any of them do is to call JarFile.close(). Following is the list of objects that may be finalized:
1 com.sun.crypto.provider.PBEKey 71 java.io.FileInputStream 10 java.io.FileOutputStream 7 java.lang.ClassLoader$NativeLibrary 14 java.net.SocksSocketImpl 22 java.util.Timer$1 1 java.util.concurrent.ScheduledThreadPoolExecutor 2 java.util.concurrent.ThreadPoolExecutor 227 java.util.jar.JarFile 288 java.util.zip.Inflater 143 org.apache.felix.framework.cache.JarContent 2 org.apache.log4j.ConsoleAppender 6 org.apache.log4j.RollingFileAppender 1 org.hsqldb.Database 8 org.hsqldb.jdbc.jdbcConnection 1 org.hsqldb.persist.NIOLockFile 1 org.hsqldb.scriptio.ScriptWriterText 86 sun.net.www.protocol.jar.URLJarFile
None of them contain references back to any of the application.
If anyone can help us understand why the JiraPluginManager and other instances listed above remain under the Sun JVM it would be most appreciated.
cheers, jed.
kirk wrote:
Hi Jed,
I've had a quick look at the heap dump. I'm having a little trouble understanding what is in there. What I can see is a large number of java.lang.reflect.Method objects being held. There seems to be two competing patterns of references holding onto these objects. I've attached some screenshots rather than use words.
The scary thing is that the references include ClassLoader.scl, JDK12Hooks.systemClassLoader as well as Apache commons logging LogFactory. With this type of the complex entanglement it would seem unlikely that these objects would ever be collected. The other pattern also includes the spiders web of references. It also includes UberspecImpl and a whole bunch of static collections. IME, static collections are involved in the vast majority of leaks I've diagnosed.
Interestingly enough the a portion of the 2nd largest consumer of memory is also tangled up in the JDK12Hooks. Random sampling leads me to AST parse trees and "no reference". Looks like much of this is tied up with Velocity. In fact the largest consumer of memory at 24% is char[]. I'm failing to find anything that is not tied up with Velocity (AST parsing).
Needs more investigation. Be interesting to run a test with generations turned on. NetBeans generations is a true count unlike that provided by YourKit.
Regards, Kirk
Jed Wesley-Smith wrote:
Classes as well. We end up getting an OOME although the profilers report only a third of the heap is reachable.
Although I indicated we saw this on the IBM jdk analysis of that dump showed a completely different issue that apparently may not be a problem (due to reflection optimisation on that jdk) - the dead objects appear to have been correctly cleared. We are reproducing this to verify.
Additionally we tried running with -client on the sun jvms as we saw a bug that might have caused it reported against server only but without success.
cheers, jed.
On 16/04/2009, at 12:51 AM, Tony Printezis <Antonios.Printezis@sun.com> wrote:
OK, I'll bite.
When you say: "a large section of memory (a plugin framework)" do you mean only objects in the young / old gen, or also classes in the perm gen?
How do you know that said memory is not being reclaimed? Do you eventually get an OOM?
Given that it happens with two different JVMs (I assume you use HotSpot on Linux and Mac, as well as the IBM JDK), it's unlikely to be a GC bug, as both JVMs would need to have the same bug. Not impossible, but unlikely, IMHO.
Tony
Jed Wesley-Smith wrote:
all,
I am writing to this list in some desperation hoping for some expert advice. We (the JIRA development team at Atlassian) have been hunting memory leaks for some weeks and in the process have tracked down and removed every possible reference to a large section of memory (a plugin framework) that we could find. Starting with all strong references and proceeding to remove soft and weak references - even things like clearing the java.lang.reflect.Proxy cache - and even Finalizer references until both YourKit, Eclipse MAT, JProfiler and jhat all report that the memory in question is dead and should be collectable, but inexplicably _the JVM still holds on to it_. There are no JNI Global references either, yet this memory remains uncollectable!
This happens for the 1.5 and 1.6 JVMs on Linux and Mac, and the IBM 1.6 JDK on Linux.
So my question is, how on earth do I search for what is referencing this uncollectable memory? Are there any other tools that can help find why this memory is not collected? Can I query the VM directly somehow?
I fear this is a JVM GC bug as no known memory analysis tool can find the heap root (i.e. according to "the rules" there is no heap root). Are there any known GC memory leaks caused by ClassLoaders being dropped for instance?
The application is creating and disposing of a lot of ClassLoaders via OSGi (Apache Felix) with Spring OSGi. It creates a lot of java.lang.reflect.Proxy class instances.
We have written this up and added an example heap dump here: http://jira.atlassian.com/browse/JRA-16932
Having come to the end of our tethers here, if anyone can help in any way it would be massively appreciated.
cheers, Jed Wesley-Smith JIRA Team @ Atlassian
Thanks for the help kirk, The original heap that is up on the issue _was not_ using CMS, just some of my latest tests. I haven't published a CMS heap. The heap provided was generated using the default GC algorithm and -XX:+HeapDumpOnOutOfMemoryError. As far as I am aware (please correct me if I am wrong) the collector _should_ have done a full GC prior to throwing an OOME - therefore I expect things that have no discernable heap root should have been collected, but the evidence is that there are massive numbers of these objects around and clearly are not collected by the Sun JVM. This is the crux of the problem. Also, if there was a permgen root I would expect to be able to find it :-) I will provide some more detailed responses and information later. cheers, jed. kirk wrote:
Ok, new information. You are using CMS. By default, CMS doesn't collect perm-space. The class-loader related bits that I saw would be in perm-space. IBM heap is structured very differently and it doesn't contain a perm-space. Your conformation of no leak in IBM JVM points directly to a perm-space leak. Read Frank Kieviet's blogs about perm space. http://blogs.sun.com/fkieviet/entry/classloader_leaks_the_dreaded_java
I am on the tipping point about CMS not collecting perm-space by default and perm-space leaks in general. But I can charge nice sums of money fixing them and look like Scotty in the process so I shalln't bite the hand that feeds.. ;-) In your case I'll just be looking for more beer!
I was chatting to Tony about the number of int[] arrays in the profile. He mentioned that holes in heap maybe represented as int[] with no GC root. This can be a bit confusing at first glance.
JiraPluginManager and DefaultPicoContainer.. hummm. I need to take another look. Ok for the Default PicoContainer I checked the first 10 of 89 instances and was able to locate a GC root for each of them. The first instance has one GC root as a Java frame. Tracing back you get right into apache commons classloaders once again. There are a number of weak links buy more importantly, there are a number of array slots that also keep a grip on these objects. Strangely enough, the first one that I randomly selected had no GC root. IMHO, this object should be collectable and since it hasn't been there are one of two possibilities. It is either in perm space or it is a dead object that wasn't collected prior to the heap dump being taken. A heap dump contains *all* objects, both dead and alive. Best to run GC twice prior to dumping heap.
8 instances of JiraPluginManager. 6 have no GC roots and should be collectable. The first instance is listed as a JavaFrame and the last is tied up with apache commons classloading.
See if you can set the CMS perm space sweeping flag, this the System.gc() twice and then re-take a heap dump and send it. I'll have another look
Regards, Kirk
Jed Wesley-Smith wrote:
Hi Kirk,
Having had a chance to look more into your findings I think we are getting somewhere, but I still have some questions.
The java.lang.reflect.Method count definitely looks like a problem, but I it is a by-product of one of the things I was using to eliminate (noisy) references - specifically the weak references that were coming java.lang.reflect.Proxy.loaderToCache and java.lang.reflect.Proxy. Unfortunately removing the caching meant that these proxies get recreated and hence the Method objects get recreated. I removed this code and rerun the tests and can confirm that the number of Method objects is now much smaller (10k).
Of more specific interest to us is the number of objects that have no GC root. I was hoping that the NetBeans analyzer might be able to identify a root that all the other analyzers had failed to find. For instance if I look at the instances of the "JiraPluginManager" I see over a dozen instances (there should normally only be one and never be more than two - while the plugin system is reloading). If I ask the NetBeans profiler (like every other profiler) for the nearest GC root it says that none is found. There should only be about 50MB of reachable heap but there is ~80MB dark heap that will not be GC'd by the Sun JVM. Another interesting case in point is the hundreds of DefaultPicoContainer instances with no GC root. These guys have fairly tightly circular reference chains with the various ComponentAdapter instances, but will not die. Also check out the ASTReference instances. These seem to have some of the tightest
We have definitely established that there is no memory leak under the IBM JDK. The aforementioned Proxy cache clearing was causing problems with heap growth but once we removed that it went away.
Our stab in the dark theory about this is that there is somehow just too much densely circular referenced heap chains living in the old gen that are somehow causing the GC algorithm to choke. The fact that the CMS collector helps to some extent does seem to support this theory. On the converse to this theory is that reducing the application's workload to zero and repeatedly asking it to full GC it will not release any further heap.
We have looked at all finalizers and the most that any of them do is to call JarFile.close(). Following is the list of objects that may be finalized:
1 com.sun.crypto.provider.PBEKey 71 java.io.FileInputStream 10 java.io.FileOutputStream 7 java.lang.ClassLoader$NativeLibrary 14 java.net.SocksSocketImpl 22 java.util.Timer$1 1 java.util.concurrent.ScheduledThreadPoolExecutor 2 java.util.concurrent.ThreadPoolExecutor 227 java.util.jar.JarFile 288 java.util.zip.Inflater 143 org.apache.felix.framework.cache.JarContent 2 org.apache.log4j.ConsoleAppender 6 org.apache.log4j.RollingFileAppender 1 org.hsqldb.Database 8 org.hsqldb.jdbc.jdbcConnection 1 org.hsqldb.persist.NIOLockFile 1 org.hsqldb.scriptio.ScriptWriterText 86 sun.net.www.protocol.jar.URLJarFile
None of them contain references back to any of the application.
If anyone can help us understand why the JiraPluginManager and other instances listed above remain under the Sun JVM it would be most appreciated.
cheers, jed.
kirk wrote:
Hi Jed,
I've had a quick look at the heap dump. I'm having a little trouble understanding what is in there. What I can see is a large number of java.lang.reflect.Method objects being held. There seems to be two competing patterns of references holding onto these objects. I've attached some screenshots rather than use words.
The scary thing is that the references include ClassLoader.scl, JDK12Hooks.systemClassLoader as well as Apache commons logging LogFactory. With this type of the complex entanglement it would seem unlikely that these objects would ever be collected. The other pattern also includes the spiders web of references. It also includes UberspecImpl and a whole bunch of static collections. IME, static collections are involved in the vast majority of leaks I've diagnosed.
Interestingly enough the a portion of the 2nd largest consumer of memory is also tangled up in the JDK12Hooks. Random sampling leads me to AST parse trees and "no reference". Looks like much of this is tied up with Velocity. In fact the largest consumer of memory at 24% is char[]. I'm failing to find anything that is not tied up with Velocity (AST parsing).
Needs more investigation. Be interesting to run a test with generations turned on. NetBeans generations is a true count unlike that provided by YourKit.
Regards, Kirk
Jed Wesley-Smith wrote:
Classes as well. We end up getting an OOME although the profilers report only a third of the heap is reachable.
Although I indicated we saw this on the IBM jdk analysis of that dump showed a completely different issue that apparently may not be a problem (due to reflection optimisation on that jdk) - the dead objects appear to have been correctly cleared. We are reproducing this to verify.
Additionally we tried running with -client on the sun jvms as we saw a bug that might have caused it reported against server only but without success.
cheers, jed.
On 16/04/2009, at 12:51 AM, Tony Printezis <Antonios.Printezis@sun.com> wrote:
OK, I'll bite.
When you say: "a large section of memory (a plugin framework)" do you mean only objects in the young / old gen, or also classes in the perm gen?
How do you know that said memory is not being reclaimed? Do you eventually get an OOM?
Given that it happens with two different JVMs (I assume you use HotSpot on Linux and Mac, as well as the IBM JDK), it's unlikely to be a GC bug, as both JVMs would need to have the same bug. Not impossible, but unlikely, IMHO.
Tony
Jed Wesley-Smith wrote:
all,
I am writing to this list in some desperation hoping for some expert advice. We (the JIRA development team at Atlassian) have been hunting memory leaks for some weeks and in the process have tracked down and removed every possible reference to a large section of memory (a plugin framework) that we could find. Starting with all strong references and proceeding to remove soft and weak references - even things like clearing the java.lang.reflect.Proxy cache - and even Finalizer references until both YourKit, Eclipse MAT, JProfiler and jhat all report that the memory in question is dead and should be collectable, but inexplicably _the JVM still holds on to it_. There are no JNI Global references either, yet this memory remains uncollectable!
This happens for the 1.5 and 1.6 JVMs on Linux and Mac, and the IBM 1.6 JDK on Linux.
So my question is, how on earth do I search for what is referencing this uncollectable memory? Are there any other tools that can help find why this memory is not collected? Can I query the VM directly somehow?
I fear this is a JVM GC bug as no known memory analysis tool can find the heap root (i.e. according to "the rules" there is no heap root). Are there any known GC memory leaks caused by ClassLoaders being dropped for instance?
The application is creating and disposing of a lot of ClassLoaders via OSGi (Apache Felix) with Spring OSGi. It creates a lot of java.lang.reflect.Proxy class instances.
We have written this up and added an example heap dump here: http://jira.atlassian.com/browse/JRA-16932
Having come to the end of our tethers here, if anyone can help in any way it would be massively appreciated.
cheers, Jed Wesley-Smith JIRA Team @ Atlassian
kirk, to be clear my tests have shown the following: MacOSX (64 bit) java version "1.6.0_07" Java(TM) SE Runtime Environment (build 1.6.0_07-b06-153) Java HotSpot(TM) 64-Bit Server VM (build 1.6.0_07-b06-57, mixed mode) 256MB default GC: starts at 8 secs per test then goes to 30 secs, then 60+ then throws OOME after approx 50 runs 256MB CMS GC () : does not throw OOME but slow down 10x and spend +80% in GC after only a few runs 256MB Parallel GC: throws OOME after approx 40 runs Linux: (quite old java version - 32 bit) java version "1.6.0" Java(TM) SE Runtime Environment (build 1.6.0-b105) Java HotSpot(TM) Server VM (build 1.6.0-b105, mixed mode) 128MB default GC does not throw OOME and does not slow down but is slow from the beginning (30 secs per test) IBM JDK (32 bit): java version "1.6.0" Java(TM) SE Runtime Environment (build pxi3260sr4-20090219_01(SR4)) IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Linux x86-32 jvmxi3260-20090215_29883 (JIT enabled, AOT enabled) J9VM - 20090215_029883_lHdSMr JIT - r9_20090213_2028 GC - 20090213_AA) JCL - 20090218_01 128MB default does not throw OOME and does not slow down. No Observations: * There are definite tipping points at which the GC suddenly starts working a lot harder in the Sun JVM tests and the performance becomes significantly worse. * All heap dumps from the Sun JVMs contain large sections of heap with no discoverable heap root. All are produced by HeapDumpOnOOME or after pressing the big red Full GC button plenty of times. cheers, jed. kirk wrote:
Ok, new information. You are using CMS. By default, CMS doesn't collect perm-space. The class-loader related bits that I saw would be in perm-space. IBM heap is structured very differently and it doesn't contain a perm-space. Your conformation of no leak in IBM JVM points directly to a perm-space leak. Read Frank Kieviet's blogs about perm space. http://blogs.sun.com/fkieviet/entry/classloader_leaks_the_dreaded_java
I am on the tipping point about CMS not collecting perm-space by default and perm-space leaks in general. But I can charge nice sums of money fixing them and look like Scotty in the process so I shalln't bite the hand that feeds.. ;-) In your case I'll just be looking for more beer!
I was chatting to Tony about the number of int[] arrays in the profile. He mentioned that holes in heap maybe represented as int[] with no GC root. This can be a bit confusing at first glance.
JiraPluginManager and DefaultPicoContainer.. hummm. I need to take another look. Ok for the Default PicoContainer I checked the first 10 of 89 instances and was able to locate a GC root for each of them. The first instance has one GC root as a Java frame. Tracing back you get right into apache commons classloaders once again. There are a number of weak links buy more importantly, there are a number of array slots that also keep a grip on these objects. Strangely enough, the first one that I randomly selected had no GC root. IMHO, this object should be collectable and since it hasn't been there are one of two possibilities. It is either in perm space or it is a dead object that wasn't collected prior to the heap dump being taken. A heap dump contains *all* objects, both dead and alive. Best to run GC twice prior to dumping heap.
8 instances of JiraPluginManager. 6 have no GC roots and should be collectable. The first instance is listed as a JavaFrame and the last is tied up with apache commons classloading.
See if you can set the CMS perm space sweeping flag, this the System.gc() twice and then re-take a heap dump and send it. I'll have another look
Regards, Kirk
Jed Wesley-Smith wrote:
Hi Kirk,
Having had a chance to look more into your findings I think we are getting somewhere, but I still have some questions.
The java.lang.reflect.Method count definitely looks like a problem, but I it is a by-product of one of the things I was using to eliminate (noisy) references - specifically the weak references that were coming java.lang.reflect.Proxy.loaderToCache and java.lang.reflect.Proxy. Unfortunately removing the caching meant that these proxies get recreated and hence the Method objects get recreated. I removed this code and rerun the tests and can confirm that the number of Method objects is now much smaller (10k).
Of more specific interest to us is the number of objects that have no GC root. I was hoping that the NetBeans analyzer might be able to identify a root that all the other analyzers had failed to find. For instance if I look at the instances of the "JiraPluginManager" I see over a dozen instances (there should normally only be one and never be more than two - while the plugin system is reloading). If I ask the NetBeans profiler (like every other profiler) for the nearest GC root it says that none is found. There should only be about 50MB of reachable heap but there is ~80MB dark heap that will not be GC'd by the Sun JVM. Another interesting case in point is the hundreds of DefaultPicoContainer instances with no GC root. These guys have fairly tightly circular reference chains with the various ComponentAdapter instances, but will not die. Also check out the ASTReference instances. These seem to have some of the tightest
We have definitely established that there is no memory leak under the IBM JDK. The aforementioned Proxy cache clearing was causing problems with heap growth but once we removed that it went away.
Our stab in the dark theory about this is that there is somehow just too much densely circular referenced heap chains living in the old gen that are somehow causing the GC algorithm to choke. The fact that the CMS collector helps to some extent does seem to support this theory. On the converse to this theory is that reducing the application's workload to zero and repeatedly asking it to full GC it will not release any further heap.
We have looked at all finalizers and the most that any of them do is to call JarFile.close(). Following is the list of objects that may be finalized:
1 com.sun.crypto.provider.PBEKey 71 java.io.FileInputStream 10 java.io.FileOutputStream 7 java.lang.ClassLoader$NativeLibrary 14 java.net.SocksSocketImpl 22 java.util.Timer$1 1 java.util.concurrent.ScheduledThreadPoolExecutor 2 java.util.concurrent.ThreadPoolExecutor 227 java.util.jar.JarFile 288 java.util.zip.Inflater 143 org.apache.felix.framework.cache.JarContent 2 org.apache.log4j.ConsoleAppender 6 org.apache.log4j.RollingFileAppender 1 org.hsqldb.Database 8 org.hsqldb.jdbc.jdbcConnection 1 org.hsqldb.persist.NIOLockFile 1 org.hsqldb.scriptio.ScriptWriterText 86 sun.net.www.protocol.jar.URLJarFile
None of them contain references back to any of the application.
If anyone can help us understand why the JiraPluginManager and other instances listed above remain under the Sun JVM it would be most appreciated.
cheers, jed.
kirk wrote:
Hi Jed,
I've had a quick look at the heap dump. I'm having a little trouble understanding what is in there. What I can see is a large number of java.lang.reflect.Method objects being held. There seems to be two competing patterns of references holding onto these objects. I've attached some screenshots rather than use words.
The scary thing is that the references include ClassLoader.scl, JDK12Hooks.systemClassLoader as well as Apache commons logging LogFactory. With this type of the complex entanglement it would seem unlikely that these objects would ever be collected. The other pattern also includes the spiders web of references. It also includes UberspecImpl and a whole bunch of static collections. IME, static collections are involved in the vast majority of leaks I've diagnosed.
Interestingly enough the a portion of the 2nd largest consumer of memory is also tangled up in the JDK12Hooks. Random sampling leads me to AST parse trees and "no reference". Looks like much of this is tied up with Velocity. In fact the largest consumer of memory at 24% is char[]. I'm failing to find anything that is not tied up with Velocity (AST parsing).
Needs more investigation. Be interesting to run a test with generations turned on. NetBeans generations is a true count unlike that provided by YourKit.
Regards, Kirk
Jed Wesley-Smith wrote:
Classes as well. We end up getting an OOME although the profilers report only a third of the heap is reachable.
Although I indicated we saw this on the IBM jdk analysis of that dump showed a completely different issue that apparently may not be a problem (due to reflection optimisation on that jdk) - the dead objects appear to have been correctly cleared. We are reproducing this to verify.
Additionally we tried running with -client on the sun jvms as we saw a bug that might have caused it reported against server only but without success.
cheers, jed.
On 16/04/2009, at 12:51 AM, Tony Printezis <Antonios.Printezis@sun.com> wrote:
OK, I'll bite.
When you say: "a large section of memory (a plugin framework)" do you mean only objects in the young / old gen, or also classes in the perm gen?
How do you know that said memory is not being reclaimed? Do you eventually get an OOM?
Given that it happens with two different JVMs (I assume you use HotSpot on Linux and Mac, as well as the IBM JDK), it's unlikely to be a GC bug, as both JVMs would need to have the same bug. Not impossible, but unlikely, IMHO.
Tony
Jed Wesley-Smith wrote:
all,
I am writing to this list in some desperation hoping for some expert advice. We (the JIRA development team at Atlassian) have been hunting memory leaks for some weeks and in the process have tracked down and removed every possible reference to a large section of memory (a plugin framework) that we could find. Starting with all strong references and proceeding to remove soft and weak references - even things like clearing the java.lang.reflect.Proxy cache - and even Finalizer references until both YourKit, Eclipse MAT, JProfiler and jhat all report that the memory in question is dead and should be collectable, but inexplicably _the JVM still holds on to it_. There are no JNI Global references either, yet this memory remains uncollectable!
This happens for the 1.5 and 1.6 JVMs on Linux and Mac, and the IBM 1.6 JDK on Linux.
So my question is, how on earth do I search for what is referencing this uncollectable memory? Are there any other tools that can help find why this memory is not collected? Can I query the VM directly somehow?
I fear this is a JVM GC bug as no known memory analysis tool can find the heap root (i.e. according to "the rules" there is no heap root). Are there any known GC memory leaks caused by ClassLoaders being dropped for instance?
The application is creating and disposing of a lot of ClassLoaders via OSGi (Apache Felix) with Spring OSGi. It creates a lot of java.lang.reflect.Proxy class instances.
We have written this up and added an example heap dump here: http://jira.atlassian.com/browse/JRA-16932
Having come to the end of our tethers here, if anyone can help in any way it would be massively appreciated.
cheers, Jed Wesley-Smith JIRA Team @ Atlassian
participants (4)
-
Jed Wesley-Smith
-
Ken--＠newsgroupstats.hk
-
kirk
-
Tony Printezis
