Bug: ToolBar always using overflow menu whenever a scaled resolution set
Cormac Redmond
credmond at certak.com
Sat Aug 30 00:20:16 UTC 2025
Hi,
A variation of this bug still persists (JFX 25-ea+28).
Run this code (125% display scaling, on Windows):
public class ToolbarBugApp extends Application {
@Override
public void start(Stage primaryStage) {
ToolBar tb = new ToolBar();
tb.getItems().addAll(
new Separator(Orientation.VERTICAL),
new Button("Create Schema")
);
BorderPane bp = new BorderPane();
bp.setTop(new HBox(tb));
primaryStage.setScene(new Scene(bp, 600, 400));
primaryStage.show();
}
public static void main(String[] args) {
launch(args);
}
}
And you'll still see this:
[image: image.png]
Kind Regards,
Cormac
On Thu, 24 Jul 2025 at 16:12, Kevin Rushforth <kevin.rushforth at oracle.com>
wrote:
> https://bugs.openjdk.org/browse/JDK-8364049
>
>
> On 7/24/2025 7:15 AM, Kevin Rushforth wrote:
>
> This does look like a real bug. Thanks for filing it.
>
> Unfortunately one cannot attach screenshots on JBS submissions, so a text
> description will have to do.
>
>
> I have attached the two images to the bug. It will show up publicly, with
> a JDK bug ID, soon.
>
> -- Kevin
>
>
> On 7/23/2025 3:17 PM, Cormac Redmond wrote:
>
> I've a habit of finding non-bugs, so prefer to discuss it first to get
> some feedback (and/or to avoid duplicating known bugs), but I assume this
> is definitely an issue, so I created it on JBS now: 9078765...
>
> Unfortunately one cannot attach screenshots on JBS submissions, so a text
> description will have to do.
>
> Thanks!
>
>
> Kind Regards,
> Cormac
>
> On Wed, 23 Jul 2025 at 20:30, Andy Goryachev <andy.goryachev at oracle.com>
> wrote:
>
>> Do we have the JBS ticket filed for this issue?
>>
>>
>>
>> -andy
>>
>>
>>
>>
>>
>>
>>
>> *From: *openjfx-dev <openjfx-dev-retn at openjdk.org> on behalf of Cormac
>> Redmond <credmond at certak.com>
>> *Date: *Tuesday, July 22, 2025 at 12:08
>> *To: *openjfx-dev at openjdk.org <openjfx-dev at openjdk.org>
>> *Subject: *Re: Bug: ToolBar always using overflow menu whenever a scaled
>> resolution set
>>
>> Any thoughts on this? It seems like a definite JavaFX bug with hopefully
>> a simple fix. Choosing any fractional scaled resolution may or may not
>> cause the issue. I also wonder what other controls may suffer from the same
>> issues.
>>
>>
>>
>> On Sat 19 Jul 2025, 19:01 Cormac Redmond, <credmond at certak.com> wrote:
>>
>> Hi,
>>
>>
>>

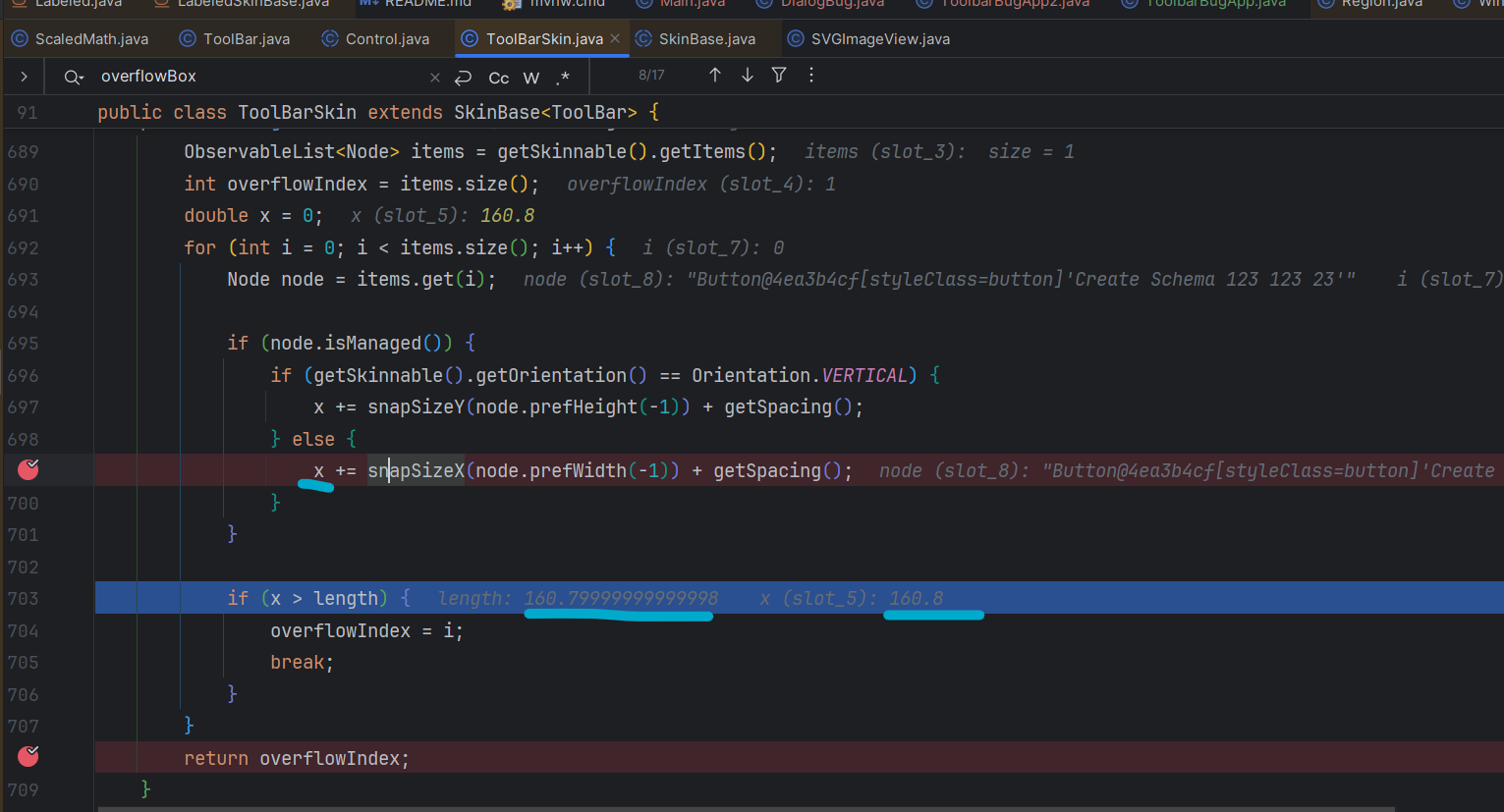

>> I've traced the bug down to a rounding error. See the below screenshot in
>> ToolBarSkin's getOverflowNodeIndex(double length).
>>
>>
>>
>> These two numbers are not equal, but should be. snapSizeX() ultimately
>> ends up grabbing getSnapScaleX(), whose value would be 1.25. If it's 1
>> (i.e., no scaling), we don't see this issue. If it's 1.25, we see this
>> rounding difference between the two numbers in this instance. If these two
>> numbers are not equal, the calling code mistakenly assumes the overflow box
>> is necessary.
>>
>>
>>
>>
>>
>> Can someone fix this?
>>
>>
>>
>>
>>
>>
>>
>> Kind Regards,
>>
>> Cormac
>>
>>
>>
>> On Sat, 19 Jul 2025 at 18:33, Cormac Redmond <credmond at certak.com> wrote:
>>

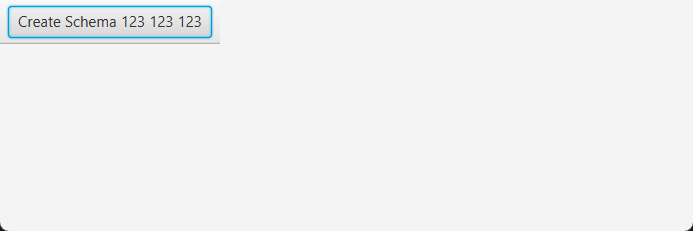

>> Confusingly, make the string longer, such as "Create Schema 123 123 123":
>>
>>
>>
>> bp.setTop(new HBox(new ToolBar(new Button("Create Schema 123 123
>> 123"))));
>>
>>
>>
>> ...and the overflow doesn't appear (but still, anything between and
>> including 13-24, it does):
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>> Kind Regards,
>>
>> Cormac
>>
>>
>>
>> On Sat, 19 Jul 2025 at 11:12, Cormac Redmond <credmond at certak.com> wrote:
>>
>> Hi,
>>
>>
>>

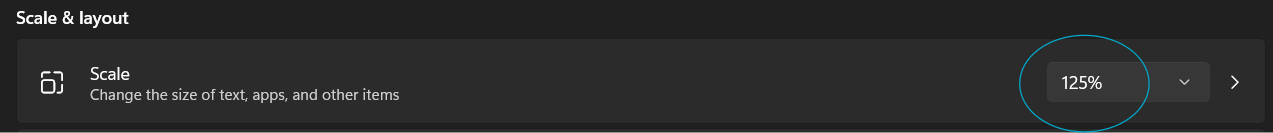

>> There's a bug whenever using a ToolBar on Windows if you set your
>> resolution scale > 100% (which is quite common). E.g., 125%:
>>
>>
>>
>>
>>

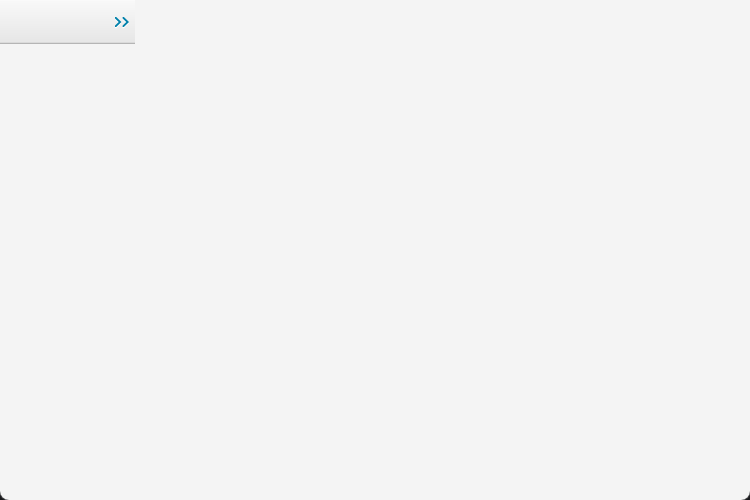

>> E.g., this is what a ToolBar always renders if scale is 125%:
>>
>>
>>
>>
>>
>> As compared to what you'd expect (scale set to normal/100%):
>>
>>
>>
>>
>>
>> Very easy to reproduce the above, set your scale to 125% and run this:
>>
>>
>>
>> public class ToolbarBugApp extends Application {
>>
>>
>> @Override
>> public void start(Stage primaryStage) {
>> BorderPane bp = new BorderPane();
>> // Wrapping in HBox and using button with 13+ chars causes bug
>> bp.setTop(new HBox(new ToolBar(new Button("Create Schema")))); //
>> BUG
>> // bp.setTop(new ToolBar(new Button("Create Schema"))); // NO BUG
>> (no HBox)
>> // bp.setTop(new HBox(new ToolBar(new Button("Create Schem"))));
>> // NO BUG (12 chars)
>> primaryStage.setScene(new Scene(bp, 600, 400));
>> primaryStage.show();
>> }
>>
>> public static void main(String[] args) {
>> launch(args);
>> }
>> }
>>
>>
>>
>> As per the comments, this bug appears to happen when your ToolBar is
>> wrapped in a HBox and contains a Button that has 13+ characters, for
>> example. This is quite a serious bug, in my opinion.
>>
>>
>>
>> I believe this is present in JFX 24 and the JFX 25 master branch.
>>
>>
>>
>>
>>
>> Kind Regards,
>>
>>
>>
>> *Cormac Redmond*
>>
>> Software Engineer, Certak Ltd.
>>
>>
>>
>> e: credmond at certak.com | m: +353 (0) 86 268 2152 | w: www.certak.com
>>
>>
>>
>>
>>
>>
>
>
