JFX25: TableView + col.setMaxWidth() now clipping column headers

Cormac Redmond credmond at certak.com
Mon Jun 30 21:54:09 UTC 2025


Hi,

Well, it's not making much sense to me.

If you set a preferred width that's "too small", it's coming up with some
other size (probably the 80 you're talking about):

// col1.setPrefWidth(500);
col1.setPrefWidth(25);

[image: image.png]

...but if you specify a max, the pref width is suddenly honoured:

col1.setMaxWidth(500);
col1.setPrefWidth(25);

[image: image.png]

The above is JFX25.

I think I noticed this oddity in my application because I had prefWidths
that were probably too small -- but JFX24 still made them fit (unbeknownst
to me). JFX25 doesn't appear to do that though, whatever has changed there.

Thanks for the tips. Not sure if this is worth worrying about or not, but
definitely the behaviour *has* changed.




Kind Regards,
Cormac

On Mon, 30 Jun 2025 at 22:29, Andy Goryachev <andy.goryachev at oracle.com>
wrote:

> When using constrained resize policy, it is better to set the preferred
> widths explicitly.  Otherwise, the initial distribution is a function of
> default preferred / maximum sizes which are, if I recall correctly, are 80
> and 5000 respectively.
>
>
>
> You can see that the first column has shrunk because of the change in the
> max width (5000 -> 500).  I am not entirely sure why setting the max width
> of one column has such an effect, it is certainly not used for initiali
> allocation except to limit the width, which is not the case in the
> screenshots provided.
>
>
>
> What happens when you set the preferred width for the columns?
>
>
>
> -andy
>
>
>
>
>
>
>
> *From: *openjfx-dev <openjfx-dev-retn at openjdk.org> on behalf of Cormac
> Redmond <credmond at certak.com>
> *Date: *Saturday, June 28, 2025 at 16:42
> *To: *openjfx-dev at openjdk.org <openjfx-dev at openjdk.org>
> *Subject: *JFX25: TableView + col.setMaxWidth() now clipping column
> headers
>
> Hi,
>
>
>
> While testing JFX25 (on Windows), previously perfectly-sized column sizes
> are now "too small", hiding parts of the column header.
>
>
>
> Code to reproduce:
>
>
>
> public class TableViewColSizeBug extends Application {
>
>     @Override
>     public void start(Stage stage) {
>         TableView<String> table = new TableView<>();
>         TableColumn<String, String> col1 = new TableColumn<>();
>         col1.setGraphic(new Text("Column One (... ...)"));
>
>
> table.setColumnResizePolicy(TableView.CONSTRAINED_RESIZE_POLICY_FLEX_LAST_COLUMN);
>
>         // Setting a max width causes a "too small" column size
>         col1.setMaxWidth(500); // Note large param
>
>         table.getColumns().addAll(col1, new TableColumn<>("Col 2"), new
> TableColumn<>("Col 3"), new TableColumn<>("Col 4"), new TableColumn<>("Col
> 5"));
>         stage.setScene(new Scene(new VBox(table), 600, 200));
>         stage.show();
>     }
>
>     public static void main(String[] args) {
>         launch();
>     }
> }
>
>
>
>
>
> Notice the clear difference between JFX24 and JFX25 behaviour. If you do
> NOT setMaxWidth, there is no issue. For some reason, calling setMaxWidth,
> no matter how large the param, triggers this.
>
>
>

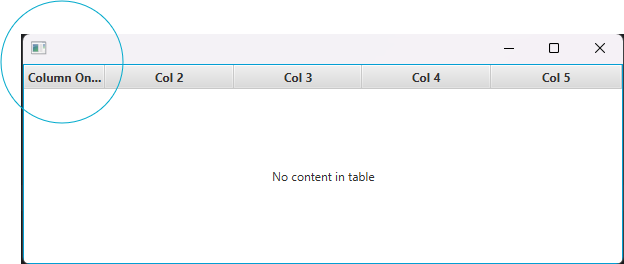

> JFX25 (as per code above, setting a column Text graphic), col width too
> small:
>
>
>

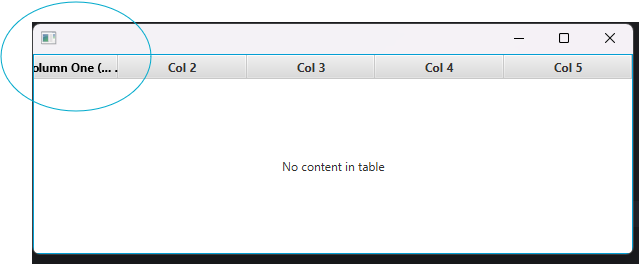

> JFX25 using "new TableColumn<>("Column One (... ...)")", instead of
> setting a Text graphic; col width also too small:
>
>
>
> JFX25 when you do NOT do setMaxWidth(...), looks fine:
>
>
>

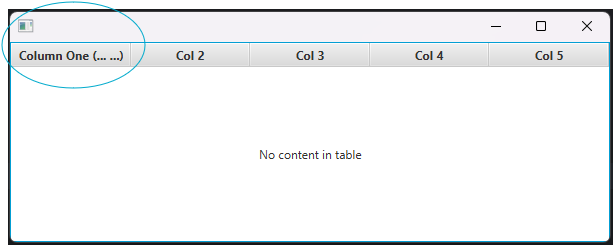

> JFX24 (in all instances, looks fine):
>
>
>
> Is this a bug?
>
>
>
>
>
> Kind Regards,
>
> Cormac
>
