JFX 26-ea+15 TableView "bug" -- related to 8359599?

[Daniel Peintner]

Hi,

Thank you both for reporting the problem and providing a solution.
I opened https://github.com/controlsfx/controlsfx/issues/1606 to keep track
of the problem.

Marius, I think it would be good if you can provide a fix/PR.

Note: I am not one of the maintainers of ControlsFX but a user and I think
it is good if we can resolve the problem.

Thanks,

-- Daniel


On Mon, Nov 24, 2025 at 6:50 AM Marius Hanl <mariushanl at web.de> wrote:

> The refresh changes could only be a problem if something in the Code is
> misbehaving.
> I had a look, and indeed, the *expandedNode* is NEVER removed. The logic
> simply does not work, never did in the previous versions.
> Prior to 26-ea+15, the table refresh was recreating ALL cells. This masked
> the bug.
> But now, the refresh method really refreshes the existing cells. So rows
> and cells need to react to that, as they should before.
>
> The root cause is, that the *expandedNode* is removed from the HashMap
> before it could be cleaned up in the corresponding TableRowSkin.
> So when the TableRowSkin tries to remove the *expandedNode*, it is
> already null.
> Removing the code fixes the issue:
>
>             public BooleanProperty getExpandedProperty(S item) {
>                 BooleanProperty value = expansionState.get(item);
>                 if (value == null) {
>                     value = new SimpleBooleanProperty(item, "expanded",
> false) {
>                         @Override
>                         protected void invalidated() {
> //                            if (!getValue()) {
> //                                expandedNodeCache.remove(getBean());
> //                            }
>                             getTableView().refresh();
>                         }
>                     };
>                     expansionState.put(item, value);
>                 }
>                 return value;
>             }
>
> Again, this was also problematic before, but masked by the recreation.
>
> To restore the old behavior, you could write:
>
>             TableView<Person> table = new TableView<>() {
>                 @Override
>                 public void refresh() {
>                     getProperties().put("recreateKey", Boolean.TRUE);
>                 }
>             };
>
> I don't know if ControlsFX is still somewhat maintained. Otherwise I can
> have file a PR there.
>
> -- Marius
>
> *Gesendet: *Sonntag, 23. November 2025 um 16:14
> *Von: *"Cormac Redmond" <credmond at certak.com>
> *An: *openjfx-dev at openjdk.org
> *Betreff: *JFX 26-ea+15 TableView "bug" -- related to 8359599?
> Hi,
>
> Since 26-ea+15, there may be a "bug" with TableView which appears to be
> rendering duplicated nodes.
>
> I first noticed this when using ControlFX's TableRowExpanderColumn (
> https://controlsfx.github.io/javadoc/11.2.2/org.controlsfx.controls/org/controlsfx/control/table/TableRowExpanderColumn.html),
> which has been working as expected for several years, right up until
> 26-ea+15. This column just provides a simple way to allow expansion of
> table rows.
>
> I have created a gist consisting of a single runnable class. It's quite
> small, and no dependencies are required (minimal ControlsFX code copied
> into it):
>
>
> https://gist.github.com/credmond/57ed65a20c1b4d1cf0272a71642077b0
>
>
> Run this on 26-ea+15, and you'll see the issue re: duplicated rendering;
> run it on anything older, and there's no issue. If I had to guess, I'd say
> this issue is related to this commit (8359599):
>
>
>
> https://github.com/openjdk/jfx/commit/02756a810c54c4068505eca6d43c1ba2a136e04e
>
>
>
> The application starts out like this on all versions, there's three rows
> (number of rows is irrelevant):
> [image: image.png]
>
> Click the +'s and -'s more than once.
>

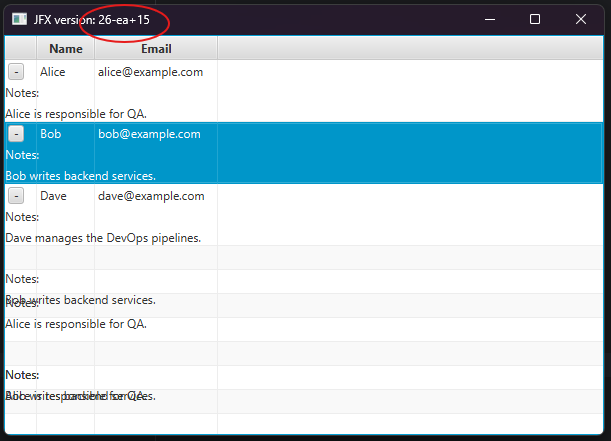

> 26-ea+15 "bug"; notice the duplications that appear just by clicking the +
> / -'s a couple of times:
> [image: image.png]
>

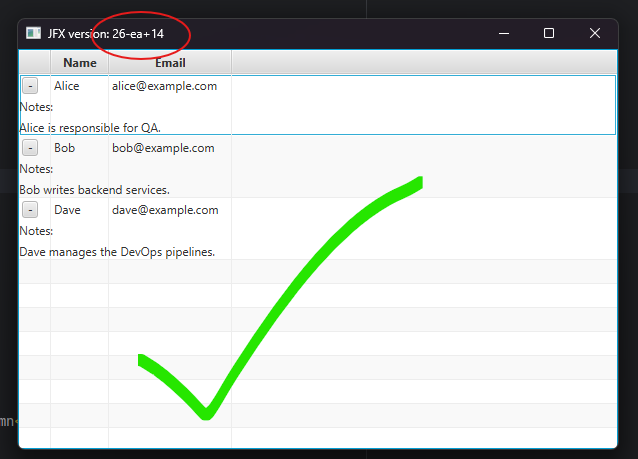

> 26-ea+14 (and previous) expected / normal behaviour:
> [image: image.png]
>
>
>
>
> Kind Regards,
> *Cormac Redmond*
>
>
>
>
