JavaFX Direct3D 12 - Second EA release
Christopher Schnick
crschnick at xpipe.io
Fri Nov 28 12:24:59 UTC 2025
I did not encounter the vanishing issue anymore with that build, so at
least it is usable.

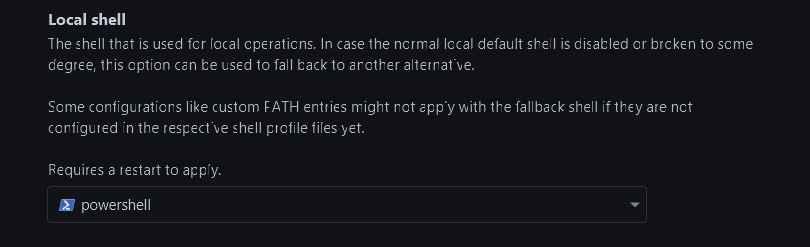

However, the font rendering issue still exists for some nodes:
It is not deterministic, meaning that if I just scroll the scrollpane
forward and back, the same text might get rendered correctly.
Also, did you see the performance results I posted for my AMD system?
Performance was quite bad there, so this is not in a stage where I can
test this in production a bit.
On 28/11/2025 12:41, Lukasz Kostyra wrote:
>
> Hi Christopher,
>
> I just pushed a fix for JDK-8371995 onto direct3d12 branch in the
> sandbox - https://github.com/openjdk/jfx-sandbox/tree/direct3d12 . If
> you find a moment, could you build JFX from that branch and check if
> your app works correctly?
>
> -Lukasz
>
> *From:*openjfx-dev <openjfx-dev-retn at openjdk.org> *On Behalf Of
> *Lukasz Kostyra
> *Sent:* Monday, 17 November 2025 15:14
> *To:* Christopher Schnick <crschnick at xpipe.io>
> *Cc:* OpenJFX <openjfx-dev at openjdk.org>
> *Subject:* RE: Re: JavaFX Direct3D 12 - Second EA release
>
> I might’ve found the problem, there is an assertion that triggers when
> multiple text objects using different fonts are drawn. It could be
> related (AFAIK Label controls will eventually end up at the same text
> rendering routines as Text nodes). Assertions are compiled out on
> Release for performance, so there is a chance it would corrupt the
> rendering without anything meaningful shown on screen.
>
> To track this I just filed https://bugs.openjdk.org/browse/JDK-8371995
> . I will check it and let you know when I fix it.
>
> On your side It might still be handy to build JFX in DebugNative, to
> confirm if the triggered assertion is the same and to later confirm if
> the fix is working for you too.
>
> -Lukasz
>
> *From:*Christopher Schnick <crschnick at xpipe.io>
> *Sent:* Saturday, 15 November 2025 17:39
> *To:* Lukasz Kostyra <lukasz.kostyra at oracle.com>
> *Cc:* OpenJFX <openjfx-dev at openjdk.org>
> *Subject:* Re: [External] : Re: JavaFX Direct3D 12 - Second EA release
>
> Forgot to add, there is nothing out of the ordinary printed in the
> verbose logs.
>
> If I find the time, I can look into compiling a debug build.
>
> But the problem should be reproducible somehow when just automatically
> creating a lot of labels with random styles, sizes, and text. Some of
> them should break as they did for me.
>
> On 15/11/2025 17:34, Christopher Schnick wrote:
>
> Ok, so I had more time to debug it. The one weird thing I observed
> when it was working was that some labels have corrupted text
> rendering:
>
>
> Not all of them, most are fine. There are no differences in terms
> of style classes etc. between the labels. When scrolling, the
> rendering sometimes switches between this corrupted and normal
> state after some delay.
>
> After a while I also figured out that text rendering is
> responsible for the issue of the nodes vanishing: Certain label
> contents broke the renderer. For example, in my application, the
> string "Password manager" when assigned to a label broke it and
> nothing was rendered anymore. I tried to find an easy reproducer
> but was not able to. It's probably very dependent on all the
> different style classes that influence the text shape/size/etc.
>
> On 13/11/2025 16:30, Lukasz Kostyra wrote:
>
> Thanks for checking.
>
> It is very possible the D3D12 runtime did not like something,
> could be related to your specific hardware. D3D12 by now has
> many extensions which differ depending on hardware and can
> lift certain restrictions - we already internally had a case
> where one GPU had some restriction that was not enforced on
> another GPU and we had to accommodate that.
>
> The first step would be to try running D3D12 with
> “-Dprism.verbose=true -Dprism.debug=true”. These should print
> additional logs that might have some extra information.
>
> If there’s nothing useful there, next step would be to build
> JavaFX with -PCONF=DebugNative - this will compile shaders in
> Debug, add assertions and debug logs to the backend - and then
> run your app with D3D12 debug layers and GPU debugging enabled
> by adding “-Dprsim.d3d12.debugLayers=true
> -Dprism.d3d12.gpuDebug=true”. Those will slow down the app
> significantly, but will also tell D3D12 to run additional API
> use and GPU use checks.
>
> If the problem happens during a render loop and debug layers
> catch it, there is a chance it will cascade into other errors
> and spam the console output - you can tell D3D12 debug layers
> to trigger an assertion on first encountered error with
> “-Dprism.d3d12.breakOnError=true”.
>
> I am running out of time today to check this myself, but if
> you find something let me know - I’ll try to reproduce the
> problem myself and we’ll see where we go from there.
>
> Good luck!
>
> - Lukasz
>
> *From:*Christopher Schnick <crschnick at xpipe.io>
> <mailto:crschnick at xpipe.io>
> *Sent:* Thursday, 13 November 2025 16:11
> *To:* Lukasz Kostyra <lukasz.kostyra at oracle.com>
> <mailto:lukasz.kostyra at oracle.com>
> *Cc:* openjfx-dev at openjdk.org
> *Subject:* [External] : Re: JavaFX Direct3D 12 - Second EA release
>
> I just tried to run a project with provided jmods and at some
> point, certain nodes are just not rendered anymore and the
> window contents vanish. But they render for a short period of
> time.
>
> There is no exception thrown as far as I can see, so not sure
> what you need for debugging.
>
> For testing, this is the built application with the d3d12
> jmods that you can use to attempt to reproduce the problem:
> https://we.tl/t-DJuX0BeqXm
> <https://urldefense.com/v3/__https:/we.tl/t-DJuX0BeqXm__;!!ACWV5N9M2RV99hQ!K0ztYeDtYFyIwxlmMB-9MDuvY7Xyd60-LuJK99hex3mclCWl29MJfnxkz2mmECxINzNr5bAdKvQ64O9Xn7hHbsl_$>
> . It is built from these sources:
> https://github.com/xpipe-io/kickstartfx
> <https://urldefense.com/v3/__https:/github.com/xpipe-io/kickstartfx__;!!ACWV5N9M2RV99hQ!K0ztYeDtYFyIwxlmMB-9MDuvY7Xyd60-LuJK99hex3mclCWl29MJfnxkz2mmECxINzNr5bAdKvQ64O9Xn9_QfENu$>
>
> On 13/11/2025 14:40, Lukasz Kostyra wrote:
>
> Hello openjfx-dev,
>
> The second Early Access(EA) build of JavaFX with the
> Windows Direct3D 12 rendering pipeline is now available
> at: https://jdk.java.net/javafxdirect3d12/
> <https://urldefense.com/v3/__https:/jdk.java.net/javafxdirect3d12/__;!!ACWV5N9M2RV99hQ!K0ztYeDtYFyIwxlmMB-9MDuvY7Xyd60-LuJK99hex3mclCWl29MJfnxkz2mmECxINzNr5bAdKvQ64O9Xnw7Bj6i8$>
>
> Please test this bundle and share your feedback by:
>
> - emailing openjfx-dev at openjdk.java.net or
>
> - reporting issues via JBS[https://bugs.openjdk.org/] or
> at https://bugreport.java.com
> <https://urldefense.com/v3/__https:/bugreport.java.com__;!!ACWV5N9M2RV99hQ!K0ztYeDtYFyIwxlmMB-9MDuvY7Xyd60-LuJK99hex3mclCWl29MJfnxkz2mmECxINzNr5bAdKvQ64O9Xn-g1RFIV$>
>
> This is the second EA release. The backend is
> feature-complete and went through a first optimization
> pass, but it still requires some more testing on more
> hardware variants before we can consider it complete. As
> such, with this release we also would like to call for
> help with performance testing the backend (more details on
> that will be sent in a separate email thread).
>
> Known issues and pending tasks are captured on JBS and can
> be accessed using the filter provided on the Direct3D 12
> EA page [https://jdk.java.net/javafxdirect3d12/
> <https://urldefense.com/v3/__https:/jdk.java.net/javafxdirect3d12/__;!!ACWV5N9M2RV99hQ!K0ztYeDtYFyIwxlmMB-9MDuvY7Xyd60-LuJK99hex3mclCWl29MJfnxkz2mmECxINzNr5bAdKvQ64O9Xnw7Bj6i8$>].
> Before reporting a new bug, please review the existing
> issues to avoid duplicates.
>
> Important Notes:
>
> 1. This is a Windows-specific feature, so only a
> Windows-specific bundle is provided.
>
> 2. The default rendering pipeline is set to d3d12. Use
> "-Dprism.order=d3d" or "-Dprism.order=sw" to select one of
> the other pipelines for comparison testing.
>
> 3. It is recommended to use JDK 25 or later.
>
> 4. At this stage D3D12 backend is feature-complete and
> went through the first phase of optimization. It is worth
> noting that, while generally we noticed performance
> improvements, it might not be on par with D3D backend on
> every machine combo - we already noted performance being
> worse on recent NVidia discrete GPUs
> [https://bugs.openjdk.org/browse/JDK-8370486] and are
> looking for solutions.
>
> 5. Issue behavior may vary across different hardware, so
> please provide detailed information, such as the output of
> "java -Dprism.verbose=true" or used hardware, when
> reporting or discussing issues.
>
> 6. Refer: Run HelloWorld using JavaFX SDK
> [https://openjfx.io/openjfx-docs/#install-javafx
> <https://urldefense.com/v3/__https:/openjfx.io/openjfx-docs/*install-javafx__;Iw!!ACWV5N9M2RV99hQ!K0ztYeDtYFyIwxlmMB-9MDuvY7Xyd60-LuJK99hex3mclCWl29MJfnxkz2mmECxINzNr5bAdKvQ64O9Xn8uMZKUY$>]
>
> We look forward to your feedback.
>
> Regards,
>
> Lukasz
>
> Confidential- Oracle Internal
>
