[External] : Re: JavaFX Direct3D 12 - Second EA release
Christopher Schnick
crschnick at xpipe.io
Mon Feb 2 15:13:41 UTC 2026
Yes, the corruption issues are fixed with that property
On 02/02/2026 16:09, Lukasz Kostyra wrote:
>
> Uh, let me finish that email - a random Windows popup appeared while
> typing which caused my mail client lose focus and interpret typing as
> shortcuts…
>
> Anyway, I also see the popup windows have this glitch. I will take a
> closer look at them soon.
>
> As for your other corruption issues, can you check with
> -Dprism.d3d12.clearOpts=false ? I have a strong suspicion that
> optimization would be the one to blame again - I was planning to
> rework it a bit more soon anyway, so it might be a good test candidate
> for that.
>
> -Lukasz
>
> *From:*openjfx-dev <openjfx-dev-retn at openjdk.org> *On Behalf Of
> *Lukasz Kostyra
> *Sent:* Monday, 2 February 2026 16:06
> *To:* Christopher Schnick <crschnick at xpipe.io>
> *Cc:* OpenJFX <openjfx-dev at openjdk.org>
> *Subject:* RE: [External] : Re: JavaFX Direct3D 12 - Second EA release
>
> Thanks for checking.
>
> I also see the popup windows in MonkeyTester have this glitch, but on
> my machine it only happens once. R
>
> *From:*Christopher Schnick <crschnick at xpipe.io>
> *Sent:* Monday, 2 February 2026 16:00
> *To:* Lukasz Kostyra <lukasz.kostyra at oracle.com>
> *Cc:* OpenJFX <openjfx-dev at openjdk.org>
> *Subject:* [External] : Re: JavaFX Direct3D 12 - Second EA release
>
> Looks good, the font looks correct now.
>
> I went through most of the application to see if there's anything
> else. In the MonkeyTester page, I found this issue with popup windows
> in the menu bar and shadows I guess? In the d3d9 build, this does not
> occur. Video is attached.
>
> If you get around to reviewing
> https://github.com/openjdk/jfx/pull/2058
> <https://urldefense.com/v3/__https:/github.com/openjdk/jfx/pull/2058__;!!ACWV5N9M2RV99hQ!J3KNuGQU-sZ0xyclRGtrUi12g5JK3IX5bWVDFjedmOKvrKaCdDd1yMemreDAQpIgwP1g8kVm5k7g_uGdXfZsrqcq$>,
> you can use the same testing system to also run kickstartfx with d3d12
> as that is also broken in various ways on there.
>
> With our main application, I am getting render corruption issues as
> shown in the video. I can also give instructions on how to run that
> application, it is very similar to kickstartfx. Just needs a bit more
> setup.
>

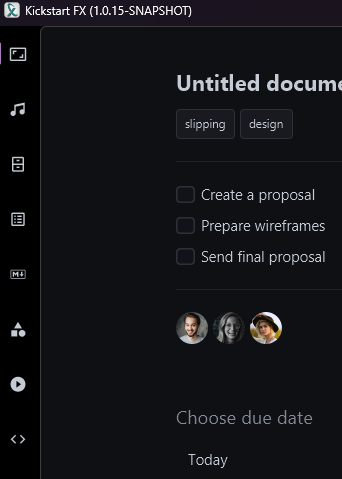

> Other than that, as mentioned by Martin I think, the translucent
> background fill for the UNIFIED stage style does not show correctly in
> kickstartfx if you compare it to the normal build. The left sidebar
> frame should have the proper window theme color when the performance
> mode is disabled, however it is only white or black, depending on the
> system theme:
>
> On 02/02/2026 12:36, Lukasz Kostyra wrote:
>
> This should be the final attempt at resolving this topic once and
> for all :)
>
> I pushed
> https://github.com/openjdk/jfx-sandbox/commit/dcaf8879db2b660e547e21edf31a1c8421aeab34
> <https://urldefense.com/v3/__https:/github.com/openjdk/jfx-sandbox/commit/dcaf8879db2b660e547e21edf31a1c8421aeab34__;!!ACWV5N9M2RV99hQ!J3KNuGQU-sZ0xyclRGtrUi12g5JK3IX5bWVDFjedmOKvrKaCdDd1yMemreDAQpIgwP1g8kVm5k7g_uGdXdE2KA0-$>
> just now which in my testing makes KickstartFX work properly even
> on UploadingPainter. After quite a bit of testing and scrolling it
> seems to me the corrupted font issues are now resolved. Please
> give it a go and let me know if it works on your end.
>
> -Lukasz
>
> *From:*openjfx-dev <openjfx-dev-retn at openjdk.org>
> <mailto:openjfx-dev-retn at openjdk.org> *On Behalf Of *Lukasz Kostyra
> *Sent:* Thursday, 29 January 2026 14:38
> *To:* Christopher Schnick <crschnick at xpipe.io>
> <mailto:crschnick at xpipe.io>
> *Cc:* OpenJFX <openjfx-dev at openjdk.org>
> <mailto:openjfx-dev at openjdk.org>
> *Subject:* RE: Re: JavaFX Direct3D 12 - Second EA release
>
> Indeed it is still there, although on my machine it happens less
> with Presenting Painter. I tried it a couple of times before
> sending the email and it worked fine, so seems like I should also
> go buy a lottery ticket today…
>
> Well, good news to me is that this happens on PresentingPainter,
> so I now have some more possibilities in terms of debugging it
> in-place. I’ll get back to you when it’s fixed.
>
> -Lukasz
>
> *From:*Christopher Schnick <crschnick at xpipe.io>
> *Sent:* Thursday, 29 January 2026 13:31
> *To:* Lukasz Kostyra <lukasz.kostyra at oracle.com>
> *Cc:* OpenJFX <openjfx-dev at openjdk.org>
> *Subject:* [External] : Re: JavaFX Direct3D 12 - Second EA release
>
> I commented out the uploading painter line and still see the same
> issue. As you say, it shouldn't make a difference. Maybe you hit
> the one time where the issue just didn't occur statistically speaking?
>
> The good news is that
> https://bugs.openjdk.org/browse/JDK-8154847 should be finally
> fixed by the new translucent backdrop PR, so it shouldn't need
> this property anymore in the future when it is merged.
>
> On 29/01/2026 12:02, Lukasz Kostyra wrote:
>
> I looked through KickstartFX and I noticed there’s a point
> where KickstartFX forces the use of Uploading Painter -
> PlatformState.java @ 112. UploadingPainter was designed to
> work with software pipeline as a fallback mechanism (SW does
> not have the SwapChain/Presentation mechanisms that HW
> pipelines use) so using it with hardware-accelerated pipelines
> is not officially supported. When I set
> prism.forceUploadingPainter to false text and buttons rendered
> correctly with D3D12 on my machine. Could you check if
> everything works fine on your end with UploadingPainter disabled?
>
> That being said, I do agree there should technically be no
> visual difference between PresentingPainter and
> UploadingPainter. I have some theories as to why that would be
> the case, but because UploadingPainter with hardware pipelines
> is not officially supported I’ll have to push this issue
> towards a later point in time. UploadingPainter makes this a
> bit extra difficult to debug because graphics debuggers rely
> on applications calling Present() to determine when the
> application progresses to the next frame - with
> UploadingPainter no Present() is called and debuggers can’t
> capture the frame properly for analysis.
>
> As for Hyper-V problems - I didn’t get a chance to test these
> yet but we also did not try running JavaFX with D3D12 backend
> on virtualized platforms. I will take a look at that use case
> also at a later point in time, once the performance
> improvements are completed.
>
> For both of these (UploadingPainter issues and Hyper-V issues)
> I’ll add separate bugs to my backlog and tackle them later
> down the line.
>
> I also checked why UploadingPainter was preferred in
> KickstartFX and this seems to be the issue -
> https://bugs.openjdk.org/browse/JDK-8154847. If what Martin
> mentioned in comment history is correct, there’s a possibility
> that with D3D12 there should be no transparency issues, as
> D3D12 defaults to alpha-supported SwapChain buffer (BGRX
> format exists but presents some technical issues and
> limitations, BGRA is more convenient). However I had no way of
> verifying this theory, on my Intel Iris Xe laptop the
> reproducer works as expected on both D3D and D3D12, with or
> without UploadingPainter.
>
> Let me know if KickstartFX runs properly with PresentingPainter.
>
> -Lukasz
>
> *From:*Christopher Schnick <crschnick at xpipe.io>
> <mailto:crschnick at xpipe.io>
> *Sent:* Wednesday, 21 January 2026 13:54
> *To:* Lukasz Kostyra <lukasz.kostyra at oracle.com>
> <mailto:lukasz.kostyra at oracle.com>
> *Cc:* OpenJFX <openjfx-dev at openjdk.org>
> <mailto:openjfx-dev at openjdk.org>
> *Subject:* [External] : Re: JavaFX Direct3D 12 - Second EA release
>
> Alright, that is good to know. I also ran the d3d12 build in a
> Hyper-V Windows 11 VM, which are known to cause issues. For
> example, this issue happens in those VMs with
> StageStyle.UNIFIED:
> https://bugs.openjdk.org/browse/JDK-8154847 (kickstartfx uses
> the unified stage style unless you turn on performance mode in
> the settings menu)
>
> On that system, the app sometimes froze completely, sometimes,
> the rendered image got stuck. Changing the performance mode
> setting and the property -Dprism.forceUploadingPainter=true
> changed the behavior, but it was broken in some way in all
> configurations.
>
> You should be able to reproduce these issues easily with the
> Windows Sandbox feature:
> https://learn.microsoft.com/en-us/windows/security/application-security/application-isolation/windows-sandbox/windows-sandbox-install
> <https://urldefense.com/v3/__https:/learn.microsoft.com/en-us/windows/security/application-security/application-isolation/windows-sandbox/windows-sandbox-install__;!!ACWV5N9M2RV99hQ!PhZXH7yVYtau5GffJqYZ2u0kJWnvdfqwZ505JNps6FUDmkZT1cTaY28P1sUyr3UvO_oLMcT6UkYRK3KwB9dOzqRg$>
>
> On 21/01/2026 13:48, Lukasz Kostyra wrote:
>
> Thanks for checking.
>
> I ran the KickstartFX build one more time, it failed but I
> found some leftover global gradle.properties file which
> defined older JDK which broke the build. Changing JDK to
> 25.0.1 everything built and works fine.
>
> I also found a way to build KickstartFX using custom JFX
> (customJavaFxLibsPath in build.gradle) and can reproduce
> your font issues locally on D3D12. I’ll report back when I
> solve them on my end. :)
>
> -Lukasz
>
> *From:*Christopher Schnick <crschnick at xpipe.io>
> <mailto:crschnick at xpipe.io>
> *Sent:* Tuesday, 20 January 2026 16:24
> *To:* Lukasz Kostyra <lukasz.kostyra at oracle.com>
> <mailto:lukasz.kostyra at oracle.com>
> *Cc:* OpenJFX <openjfx-dev at openjdk.org>
> <mailto:openjfx-dev at openjdk.org>
> *Subject:* [External] : Re: JavaFX Direct3D 12 - Second EA
> release
>
> In our main application I am getting the following error
> spammed in the logs:
>
> 16:18:08:571 - error: java.lang.NullPointerException:
> Cannot invoke "com.sun.prism.Texture.getPixelFormat()"
> because "tex" is null
> 16:18:08:571 - error: at
> javafx.graphics at 26-internal/com.sun.prism.impl.BaseGraphics.drawTexture(BaseGraphics.java:464)
> 16:18:08:571 - error: at
> javafx.graphics at 26-internal/com.sun.prism.impl.ps.BaseShaderGraphics.drawTexture(BaseShaderGraphics.java:159)
> 16:18:08:571 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGImageView.renderContent(NGImageView.java:123)
> 16:18:08:571 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:571 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGImageView.doRender(NGImageView.java:103)
> 16:18:08:571 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:571 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:571 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:571 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:571 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:571 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.renderForClip(NGNode.java:2279)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.renderRectClip(NGNode.java:2186)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.renderClip(NGNode.java:2213)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.CacheFilter.renderNodeToCache(CacheFilter.java:682)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.CacheFilter.render(CacheFilter.java:586)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.renderCached(NGNode.java:2343)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2054)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.renderForClip(NGNode.java:2279)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.renderRectClip(NGNode.java:2186)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.renderClip(NGNode.java:2213)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.CacheFilter.renderNodeToCache(CacheFilter.java:682)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.CacheFilter.render(CacheFilter.java:586)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.renderCached(NGNode.java:2343)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2054)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGGroup.renderContent(NGGroup.java:266)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGRegion.renderContent(NGRegion.java:579)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.doRender(NGNode.java:2063)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.sg.prism.NGNode.render(NGNode.java:1955)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.tk.quantum.ViewPainter.doPaint(ViewPainter.java:481)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.tk.quantum.ViewPainter.paintImpl(ViewPainter.java:329)
> 16:18:08:572 - error: at
> javafx.graphics at 26-internal/com.sun.javafx.tk.quantum.UploadingPainter.run(UploadingPainter.java:143)
> 16:18:08:572 - error: at
> java.base/java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:545)
> 16:18:08:572 - error: at
> java.base/java.util.concurrent.FutureTask.runAndReset$$$capture(FutureTask.java:369)
> 16:18:08:572 - error: at
> java.base/java.util.concurrent.FutureTask.runAndReset(FutureTask.java)
>
> In kickstartfx, I still get the font rendering issues. Can
> you share the problems you encountered? I tried to build
> it on a blank VM with git clone, setting a JDK25 in the
> PATH, and running gradlew.bat run without issues.
>
> On 20/01/2026 15:40, Lukasz Kostyra wrote:
>
> Hi Christopher,
>
> After Christmas break I came back to this issue with
> some new patches. There were some problems I found
> with the clear optimization, I just submitted
> https://github.com/openjdk/jfx-sandbox/commit/8d3ec1deff714caa4eab779581a341e18dd78f31
> <https://urldefense.com/v3/__https:/github.com/openjdk/jfx-sandbox/commit/8d3ec1deff714caa4eab779581a341e18dd78f31__;!!ACWV5N9M2RV99hQ!Js1REsWcDjMJTtd7_06jSspPNfrXAhmcztgQtVr7IH0e7xUQW51OhBZ-P9O6TfdB0v6e7Brk7yYlHI7mq363A1sg$>
> and according to my local testing everything seems to
> be fine now.
>
> When you have a moment, could you check out the
> changes above and let me know if everything works
> correctly in your app?
>
> If there are still problems I would like to find a way
> to build your app and test it locally. I tried doing
> that earlier via
> https://github.com/xpipe-io/kickstartfx
> <https://urldefense.com/v3/__https:/github.com/xpipe-io/kickstartfx__;!!ACWV5N9M2RV99hQ!K0ztYeDtYFyIwxlmMB-9MDuvY7Xyd60-LuJK99hex3mclCWl29MJfnxkz2mmECxINzNr5bAdKvQ64O9Xn9_QfENu$>
> you linked earlier but encountered some problems when
> building, so I’m going to need your help or some
> instructions on how to build the app.
>
> Regards,
>
> -Lukasz
>
> *From:*openjfx-dev <openjfx-dev-retn at openjdk.org>
> <mailto:openjfx-dev-retn at openjdk.org> *On Behalf Of
> *Lukasz Kostyra
> *Sent:* Wednesday, 10 December 2025 13:29
> *To:* Christopher Schnick <crschnick at xpipe.io>
> <mailto:crschnick at xpipe.io>
> *Cc:* OpenJFX <openjfx-dev at openjdk.org>
> <mailto:openjfx-dev at openjdk.org>
> *Subject:* RE: Re: JavaFX Direct3D 12 - Second EA release
>
> It should work fine without the property. Thanks for
> your help, I’ll keep searching.
>
> -Lukasz
>
> *From:*Christopher Schnick <crschnick at xpipe.io>
> *Sent:* Tuesday, 9 December 2025 17:10
> *To:* Lukasz Kostyra <lukasz.kostyra at oracle.com>
> *Cc:* OpenJFX <openjfx-dev at openjdk.org>
> *Subject:* [External] : Re: JavaFX Direct3D 12 -
> Second EA release
>
> I tried this commit, but the problem shows up again. I
> tested the previous commit with the passed property
> again, and that one still works.
>
> Or should I still pass the property in this commit as
> well?
>
> On 09/12/2025 4:36 PM, Lukasz Kostyra wrote:
>
> Hi Christopher,
>
> I updated the direct3d12 branch with the fix -
> https://github.com/openjdk/jfx-sandbox/commit/ffc078b9593c44a8ed0629a74b8bda18357f93a8
> <https://urldefense.com/v3/__https:/github.com/openjdk/jfx-sandbox/commit/ffc078b9593c44a8ed0629a74b8bda18357f93a8__;!!ACWV5N9M2RV99hQ!OLgt8HGQc2SZQqycgcFI2bUPgQXEdES6FZw0Gn_bo_kiS2WoY4A68Z3JxY-ElC_58HSF12FXKCoat4MrrESK9ceD$>
> . Let me know how it works and if the problem has
> been resolved.
>
> Thanks,
>
> -Lukasz
>
> *From:*openjfx-dev <openjfx-dev-retn at openjdk.org>
> <mailto:openjfx-dev-retn at openjdk.org> *On Behalf
> Of *Lukasz Kostyra
> *Sent:* Thursday, 4 December 2025 11:52
> *To:* Christopher Schnick <crschnick at xpipe.io>
> <mailto:crschnick at xpipe.io>
> *Cc:* OpenJFX <openjfx-dev at openjdk.org>
> <mailto:openjfx-dev at openjdk.org>
> *Subject:* RE: Re: JavaFX Direct3D 12 - Second EA
> release
>
> Thanks for checking. I filed
> https://bugs.openjdk.org/browse/JDK-8373088 to
> track this since this is unrelated to specifically
> text, will probably get to it in a few days.
>
> -Lukasz
>
> *From:*Christopher Schnick <crschnick at xpipe.io>
> *Sent:* Wednesday, 3 December 2025 18:53
> *To:* Lukasz Kostyra <lukasz.kostyra at oracle.com>
> *Cc:* OpenJFX <openjfx-dev at openjdk.org>
> *Subject:* [External] : Re: JavaFX Direct3D 12 -
> Second EA release
>
> This commit fixes the problem when the property is
> set to false and it shows up again if the property
> is not set to false
>
> On 03/12/2025 5:54 PM, Lukasz Kostyra wrote:
>
> Hi Christopher,
>
> I did not find the way to reproduce this
> locally, but I found a problem with one of the
> optimizations that is in the backend. To
> double check if that is in fact the issue I
> pushed
> https://github.com/openjdk/jfx-sandbox/commit/7078d621dc282ab8439800b84b78377dec3eea89
> <https://urldefense.com/v3/__https:/github.com/openjdk/jfx-sandbox/commit/7078d621dc282ab8439800b84b78377dec3eea89__;!!ACWV5N9M2RV99hQ!JFEGrvRPb5-P9TxSZen0sbWuRq_Go_lMwM3kO5m0u_RlMgJW1cDfe8HxdAlgEedAsg4aSm99IyDYzbsN8x-LMbPQ$>
> to disable the optimization (it is on by
> default, disabling it fixes that specific
> problem on my end) and I’d like to
> double-check if this is the correct lead.
>
> When you have a moment, could you build JFX
> with that change and run your app with
> “-Dprism.d3d12.clearOpts=false” added to the
> command line?
>
> If the problem persists with
> prism.d3d12.clearOpts set to false I would
> need some more information on how these labels
> are rendered to track this down.
>
> Thanks,
>
> -Lukasz
>
> *From:*Christopher Schnick
> <crschnick at xpipe.io> <mailto:crschnick at xpipe.io>
> *Sent:* Friday, 28 November 2025 13:25
> *To:* Lukasz Kostyra
> <lukasz.kostyra at oracle.com>
> <mailto:lukasz.kostyra at oracle.com>
> *Cc:* OpenJFX <openjfx-dev at openjdk.org>
> <mailto:openjfx-dev at openjdk.org>
> *Subject:* [External] : Re: JavaFX Direct3D 12
> - Second EA release
>
> I did not encounter the vanishing issue
> anymore with that build, so at least it is usable.
>
> However, the font rendering issue still exists
> for some nodes:
>
> It is not deterministic, meaning that if I
> just scroll the scrollpane forward and back,
> the same text might get rendered correctly.
>
> Also, did you see the performance results I
> posted for my AMD system? Performance was
> quite bad there, so this is not in a stage
> where I can test this in production a bit.
>
> On 28/11/2025 12:41, Lukasz Kostyra wrote:
>
> Hi Christopher,
>
> I just pushed a fix for JDK-8371995 onto
> direct3d12 branch in the sandbox -
> https://github.com/openjdk/jfx-sandbox/tree/direct3d12
> <https://urldefense.com/v3/__https:/github.com/openjdk/jfx-sandbox/tree/direct3d12__;!!ACWV5N9M2RV99hQ!KuiGt3yDg1iNtCswOA3yLUbPKFpTnRKQE9clxnsd6xQRhnGJLoz7c697JC77xG2Q4qwsMWDePar6hRx9DY1uTPpy$>
> . If you find a moment, could you build
> JFX from that branch and check if your app
> works correctly?
>
> -Lukasz
>
> *From:*openjfx-dev
> <openjfx-dev-retn at openjdk.org>
> <mailto:openjfx-dev-retn at openjdk.org> *On
> Behalf Of *Lukasz Kostyra
> *Sent:* Monday, 17 November 2025 15:14
> *To:* Christopher Schnick
> <crschnick at xpipe.io>
> <mailto:crschnick at xpipe.io>
> *Cc:* OpenJFX <openjfx-dev at openjdk.org>
> <mailto:openjfx-dev at openjdk.org>
> *Subject:* RE: Re: JavaFX Direct3D 12 -
> Second EA release
>
> I might’ve found the problem, there is an
> assertion that triggers when multiple text
> objects using different fonts are drawn.
> It could be related (AFAIK Label controls
> will eventually end up at the same text
> rendering routines as Text nodes).
> Assertions are compiled out on Release for
> performance, so there is a chance it would
> corrupt the rendering without anything
> meaningful shown on screen.
>
> To track this I just filed
> https://bugs.openjdk.org/browse/JDK-8371995
> . I will check it and let you know when I
> fix it.
>
> On your side It might still be handy to
> build JFX in DebugNative, to confirm if
> the triggered assertion is the same and to
> later confirm if the fix is working for
> you too.
>
> -Lukasz
>
> *From:*Christopher Schnick
> <crschnick at xpipe.io>
> *Sent:* Saturday, 15 November 2025 17:39
> *To:* Lukasz Kostyra
> <lukasz.kostyra at oracle.com>
> *Cc:* OpenJFX <openjfx-dev at openjdk.org>
> *Subject:* Re: [External] : Re: JavaFX
> Direct3D 12 - Second EA release
>
> Forgot to add, there is nothing out of the
> ordinary printed in the verbose logs.
>
> If I find the time, I can look into
> compiling a debug build.
>
> But the problem should be reproducible
> somehow when just automatically creating a
> lot of labels with random styles, sizes,
> and text. Some of them should break as
> they did for me.
>
> On 15/11/2025 17:34, Christopher Schnick
> wrote:
>
> Ok, so I had more time to debug it.
> The one weird thing I observed when it
> was working was that some labels have
> corrupted text rendering:
>
>
> Not all of them, most are fine. There
> are no differences in terms of style
> classes etc. between the labels. When
> scrolling, the rendering sometimes
> switches between this corrupted and
> normal state after some delay.
>
> After a while I also figured out that
> text rendering is responsible for the
> issue of the nodes vanishing: Certain
> label contents broke the renderer. For
> example, in my application, the string
> "Password manager" when assigned to a
> label broke it and nothing was
> rendered anymore. I tried to find an
> easy reproducer but was not able to.
> It's probably very dependent on all
> the different style classes that
> influence the text shape/size/etc.
>
> On 13/11/2025 16:30, Lukasz Kostyra wrote:
>
> Thanks for checking.
>
> It is very possible the D3D12
> runtime did not like something,
> could be related to your specific
> hardware. D3D12 by now has many
> extensions which differ depending
> on hardware and can lift certain
> restrictions - we already
> internally had a case where one
> GPU had some restriction that was
> not enforced on another GPU and we
> had to accommodate that.
>
> The first step would be to try
> running D3D12 with
> “-Dprism.verbose=true
> -Dprism.debug=true”. These should
> print additional logs that might
> have some extra information.
>
> If there’s nothing useful there,
> next step would be to build JavaFX
> with -PCONF=DebugNative - this
> will compile shaders in Debug, add
> assertions and debug logs to the
> backend - and then run your app
> with D3D12 debug layers and GPU
> debugging enabled by adding
> “-Dprsim.d3d12.debugLayers=true
> -Dprism.d3d12.gpuDebug=true”.
> Those will slow down the app
> significantly, but will also tell
> D3D12 to run additional API use
> and GPU use checks.
>
> If the problem happens during a
> render loop and debug layers catch
> it, there is a chance it will
> cascade into other errors and spam
> the console output - you can tell
> D3D12 debug layers to trigger an
> assertion on first encountered
> error with
> “-Dprism.d3d12.breakOnError=true”.
>
> I am running out of time today to
> check this myself, but if you find
> something let me know - I’ll try
> to reproduce the problem myself
> and we’ll see where we go from there.
>
> Good luck!
>
> - Lukasz
>
> *From:*Christopher Schnick
> <crschnick at xpipe.io>
> <mailto:crschnick at xpipe.io>
> *Sent:* Thursday, 13 November 2025
> 16:11
> *To:* Lukasz Kostyra
> <lukasz.kostyra at oracle.com>
> <mailto:lukasz.kostyra at oracle.com>
> *Cc:* openjfx-dev at openjdk.org
> *Subject:* [External] : Re: JavaFX
> Direct3D 12 - Second EA release
>
> I just tried to run a project with
> provided jmods and at some point,
> certain nodes are just not
> rendered anymore and the window
> contents vanish. But they render
> for a short period of time.
>
> There is no exception thrown as
> far as I can see, so not sure what
> you need for debugging.
>
> For testing, this is the built
> application with the d3d12 jmods
> that you can use to attempt to
> reproduce the problem:
> https://we.tl/t-DJuX0BeqXm
> <https://urldefense.com/v3/__https:/we.tl/t-DJuX0BeqXm__;!!ACWV5N9M2RV99hQ!K0ztYeDtYFyIwxlmMB-9MDuvY7Xyd60-LuJK99hex3mclCWl29MJfnxkz2mmECxINzNr5bAdKvQ64O9Xn7hHbsl_$>
> . It is built from these sources:
> https://github.com/xpipe-io/kickstartfx
> <https://urldefense.com/v3/__https:/github.com/xpipe-io/kickstartfx__;!!ACWV5N9M2RV99hQ!K0ztYeDtYFyIwxlmMB-9MDuvY7Xyd60-LuJK99hex3mclCWl29MJfnxkz2mmECxINzNr5bAdKvQ64O9Xn9_QfENu$>
>
> On 13/11/2025 14:40, Lukasz
> Kostyra wrote:
>
> Hello openjfx-dev,
>
> The second Early Access(EA)
> build of JavaFX with the
> Windows Direct3D 12 rendering
> pipeline is now available at:
> https://jdk.java.net/javafxdirect3d12/
> <https://urldefense.com/v3/__https:/jdk.java.net/javafxdirect3d12/__;!!ACWV5N9M2RV99hQ!K0ztYeDtYFyIwxlmMB-9MDuvY7Xyd60-LuJK99hex3mclCWl29MJfnxkz2mmECxINzNr5bAdKvQ64O9Xnw7Bj6i8$>
>
> Please test this bundle and
> share your feedback by:
>
> - emailing
> openjfx-dev at openjdk.java.net or
>
> - reporting issues via
> JBS[https://bugs.openjdk.org/]
> or at
> https://bugreport.java.com
> <https://urldefense.com/v3/__https:/bugreport.java.com__;!!ACWV5N9M2RV99hQ!K0ztYeDtYFyIwxlmMB-9MDuvY7Xyd60-LuJK99hex3mclCWl29MJfnxkz2mmECxINzNr5bAdKvQ64O9Xn-g1RFIV$>
>
> This is the second EA release.
> The backend is
> feature-complete and went
> through a first optimization
> pass, but it still requires
> some more testing on more
> hardware variants before we
> can consider it complete. As
> such, with this release we
> also would like to call for
> help with performance testing
> the backend (more details on
> that will be sent in a
> separate email thread).
>
> Known issues and pending tasks
> are captured on JBS and can be
> accessed using the filter
> provided on the Direct3D 12 EA
> page
> [https://jdk.java.net/javafxdirect3d12/
> <https://urldefense.com/v3/__https:/jdk.java.net/javafxdirect3d12/__;!!ACWV5N9M2RV99hQ!K0ztYeDtYFyIwxlmMB-9MDuvY7Xyd60-LuJK99hex3mclCWl29MJfnxkz2mmECxINzNr5bAdKvQ64O9Xnw7Bj6i8$>].
> Before reporting a new bug,
> please review the existing
> issues to avoid duplicates.
>
> Important Notes:
>
> 1. This is a Windows-specific
> feature, so only a
> Windows-specific bundle is
> provided.
>
> 2. The default rendering
> pipeline is set to d3d12. Use
> "-Dprism.order=d3d" or
> "-Dprism.order=sw" to select
> one of the other pipelines for
> comparison testing.
>
> 3. It is recommended to use
> JDK 25 or later.
>
> 4. At this stage D3D12 backend
> is feature-complete and went
> through the first phase of
> optimization. It is worth
> noting that, while generally
> we noticed performance
> improvements, it might not be
> on par with D3D backend on
> every machine combo - we
> already noted performance
> being worse on recent NVidia
> discrete GPUs
> [https://bugs.openjdk.org/browse/JDK-8370486]
> and are looking for solutions.
>
> 5. Issue behavior may vary
> across different hardware, so
> please provide detailed
> information, such as the
> output of "java
> -Dprism.verbose=true" or used
> hardware, when reporting or
> discussing issues.
>
> 6. Refer: Run HelloWorld using
> JavaFX SDK
> [https://openjfx.io/openjfx-docs/#install-javafx
> <https://urldefense.com/v3/__https:/openjfx.io/openjfx-docs/*install-javafx__;Iw!!ACWV5N9M2RV99hQ!K0ztYeDtYFyIwxlmMB-9MDuvY7Xyd60-LuJK99hex3mclCWl29MJfnxkz2mmECxINzNr5bAdKvQ64O9Xn8uMZKUY$>]
>
> We look forward to your feedback.
>
> Regards,
>
> Lukasz
>
> Confidential- Oracle Internal
>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <https://mail.openjdk.org/pipermail/openjfx-dev/attachments/20260202/983e3230/attachment-0001.htm>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image001.png
Type: image/png
Size: 26376 bytes
Desc: not available
URL: <https://mail.openjdk.org/pipermail/openjfx-dev/attachments/20260202/983e3230/image001-0001.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image002.png
Type: image/png
Size: 18275 bytes
Desc: not available
URL: <https://mail.openjdk.org/pipermail/openjfx-dev/attachments/20260202/983e3230/image002-0001.png>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image003.png
Type: image/png
Size: 57114 bytes
Desc: not available
URL: <https://mail.openjdk.org/pipermail/openjfx-dev/attachments/20260202/983e3230/image003-0001.png>
More information about the openjfx-dev
mailing list
